The smart TD934K20 is round and ultra wide angle light. Acts as a unique LED downlight fixture in places such as hotels and villas making it easy to take your business global.
IP Level: IP54
High Quality Die-casting Aluminium
Gentle And Natural Light
Life Span Up to 50,000 Hours
Excellent Thermal Dissipation
| Model | Color | Dimension （mm) |
Cut-out Size (mm) |
IP Level | Power | Light Source | CCT | CRI | Beam Angle | Luminous Flux |

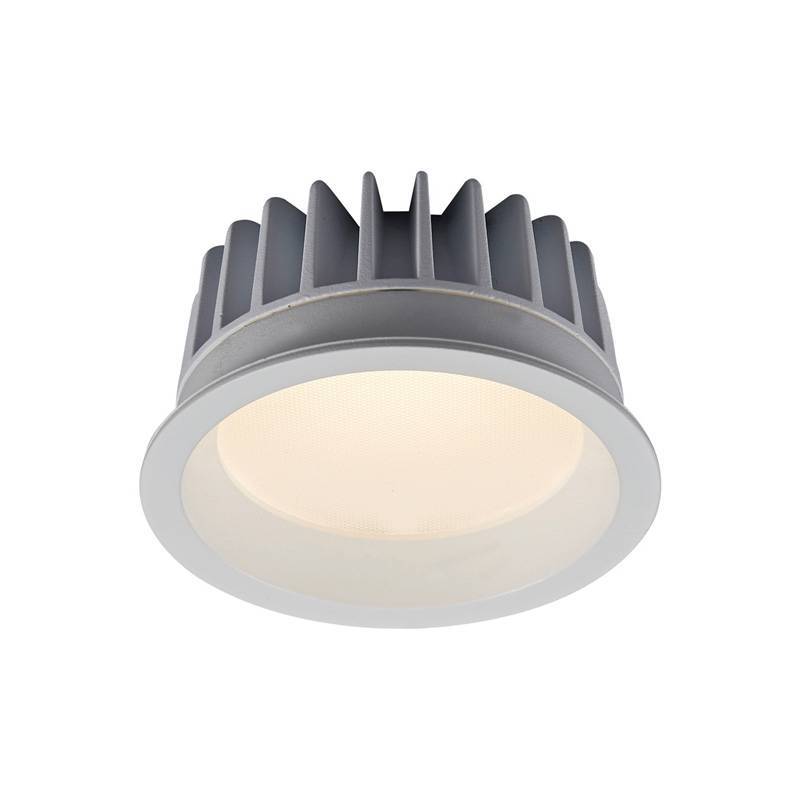

| TD931K05 | Sand White | D98*H51 | φ85 | IP54 | 5W | BRIDGELUX SMT |
3000K 4000K 5000K |
Ra90 | 90° | 340LM |

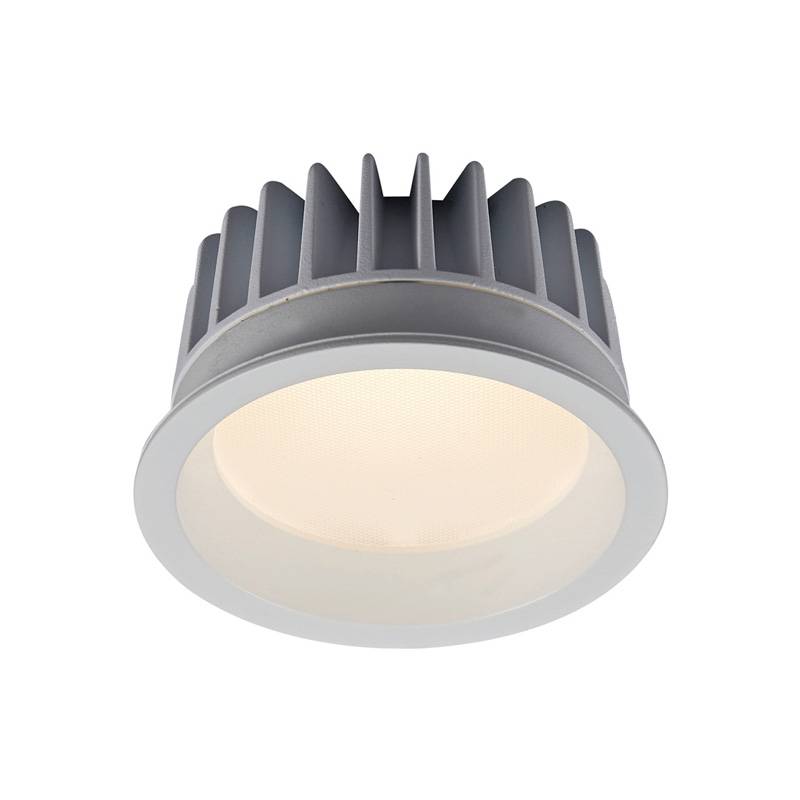

| TD932K10 | Sand White | D118*H59 | φ105 | IP54 | 10W | BRIDGELUX SMT |
3000K 4000K 5000K |
Ra90 | 90° | 716LM |
| TD933K15 | Sand White | D140*H64 | φ125 | IP54 | 15W | BRIDGELUX SMT |
3000K 4000K 5000K |
Ra90 | 90° | 1115LM |
| TD934K20 | Sand White | D158*H66 | φ140 | IP54 | 20W | BRIDGELUX SMT |
3000K 4000K 5000K |
Ra90 | 90° | 1465LM |
| TD935K25 | Sand White | D185*H74 | φ165 | IP54 | 25W | BRIDGELUX SMT |
3000K 4000K 5000K |
Ra90 | 90° | 2061LM |

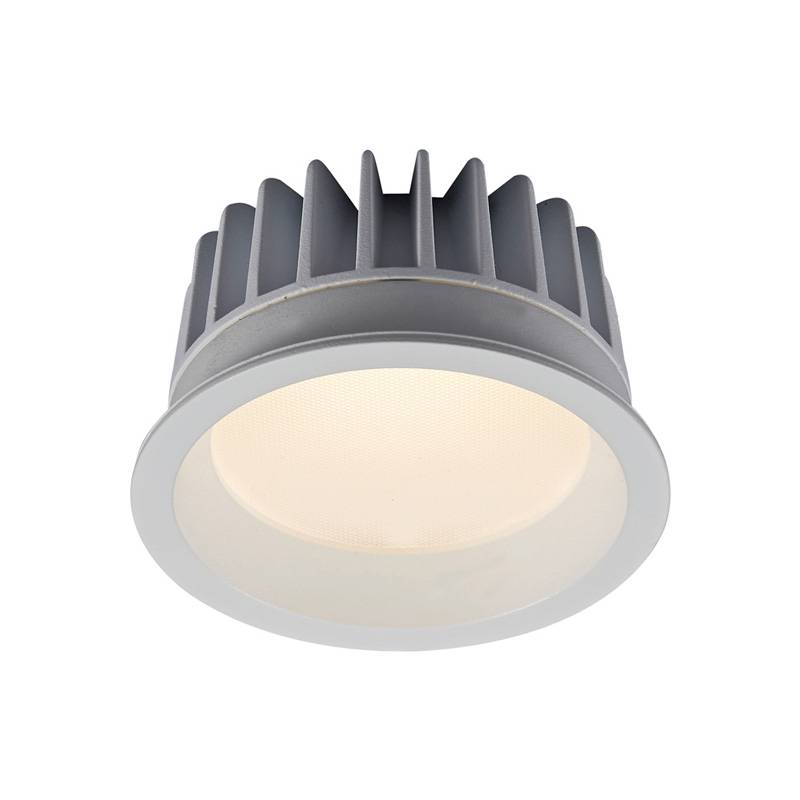

| TD936K30 | Sand White | D230*H73 | φ200 | IP54 | 30W | BRIDGELUX SMT |
3000K 4000K 5000K |
Ra90 | 90° | 2593LM |
Trust us to be your partner in the LED lighting industry for our prolonged warranty and dedicated service.
