The smart TD8304 has a surface treatment with excellent texture feeling. Acts as a unique LED spotlight fixture in places such as hotels and villas making it easy to take your business global.
Deep Anti-glare
High Quality Aluminium
Gentle And Natural Light
Life Span Up to 50,000 Hours
Triac, 0-10V, DALI Dimming For Option
Excellent Thermal Dissipation
| Model | Color | Dimension （mm) |
Cut-out Size (mm) |
IP Level | Power | Light Source | CCT | CRI | Beam Angle | Luminous Flux |

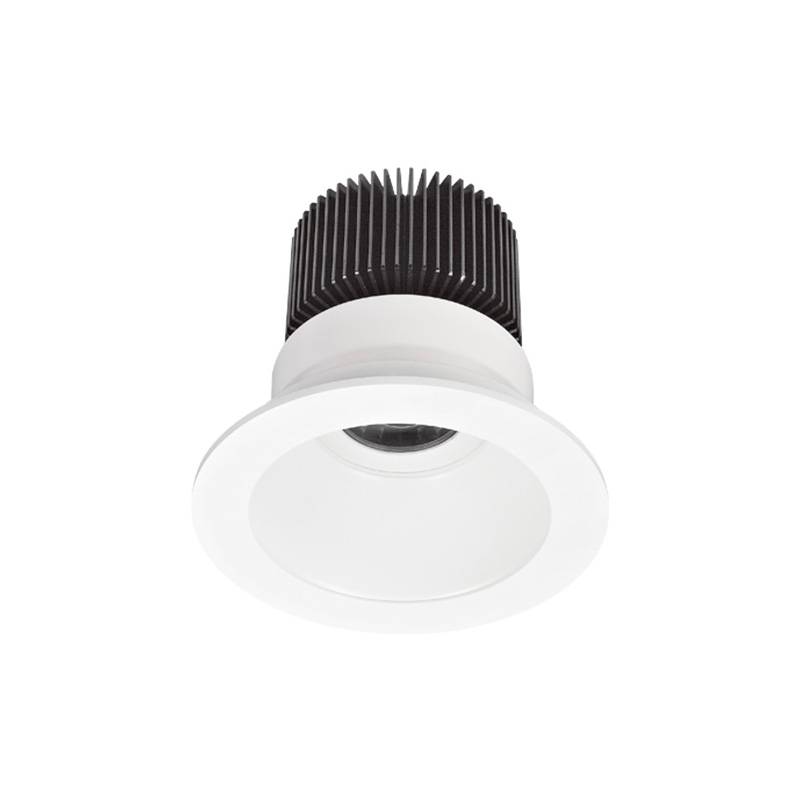

| TD8301 | Matt White | D94*H103 | φ80 | IP20 | 7W | CREE COB | 2700K 3000K 4000K 5000K |
Ra90 | 20° /30°/40° /60° | 448LM |

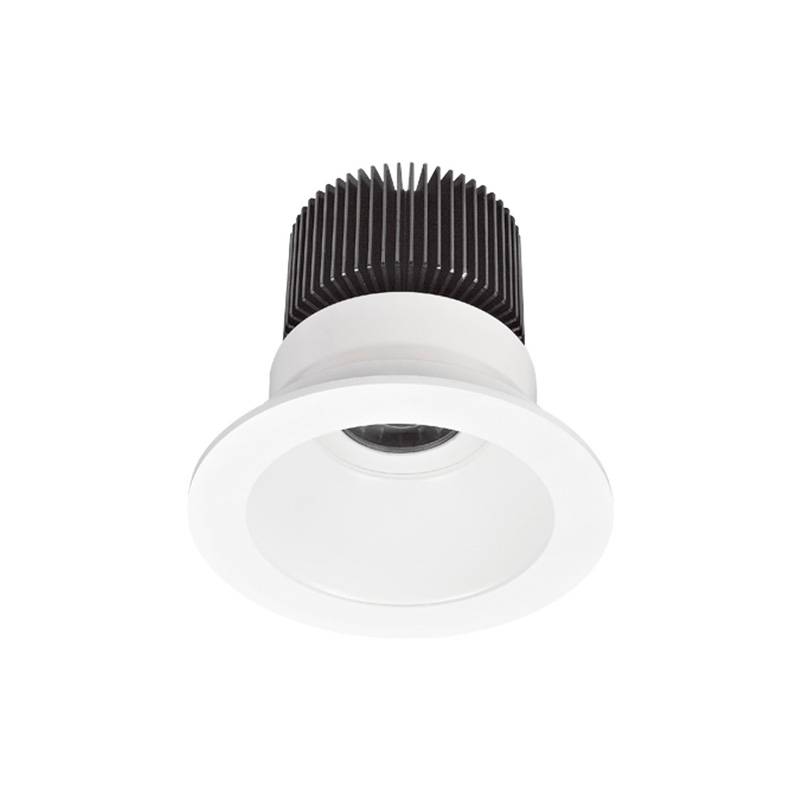

| TD8302 | Matt White | D105*H110 | φ90 | IP20 | 10W | CREE COB | 2700K 3000K 4000K 5000K |
Ra90 | 30°/40° /60° | 680LM |
| TD8303 | Matt White | D120*H115 | φ100 | IP20 | 12W | CREE COB | 2700K 3000K 4000K 5000K |
Ra90 | 24°/40° /60° | 760LM |
| TD8304 | Matt White | D134*H123 | φ115 | IP20 | 20W | CREE COB | 2700K 3000K 4000K 5000K |
Ra90 | 24°/40° /60° | 1194LM |
| TD8306 | Matt White | D194*H138 | φ165 | IP20 | 30W | CREE COB | 2700K 3000K 4000K 5000K |
Ra90 | 30°/ 40° | 1941LM |

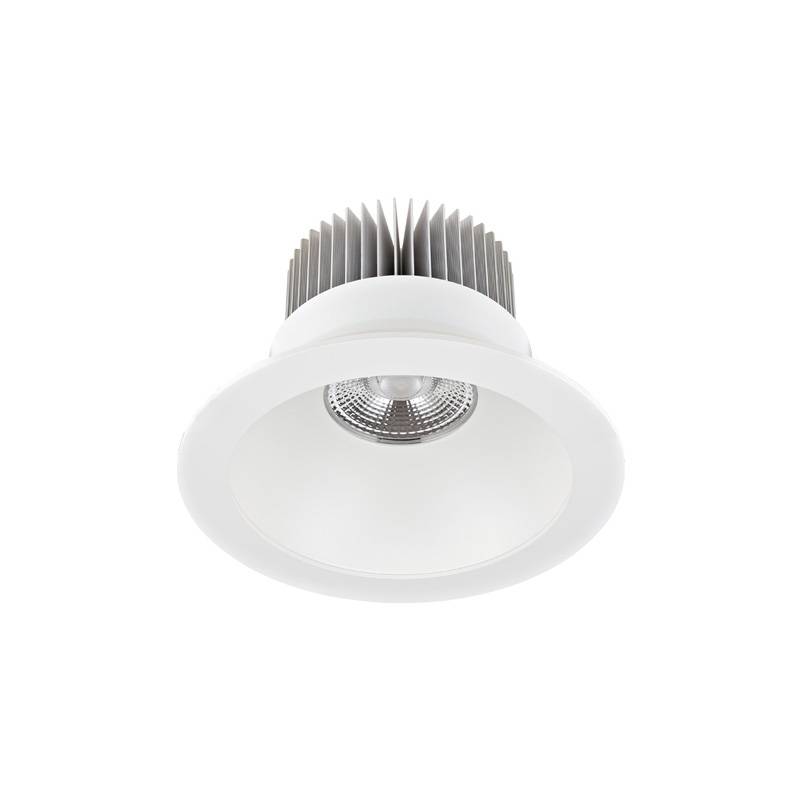

| TD8308 | Matt White | D240*H160 | φ210 | IP20 | 50W | CREE COB | 2700K 3000K 4000K 5000K |
Ra90 | 24°/40° /60° | 2665LM |
Trust us to be your partner in the LED lighting industry for our prolonged warranty and dedicated service.
