The smart TD2306 is round panel with ultra wide angle light. Acts as a unique LED downlight fixture in places such as hotels and villas making it easy to take your business global.
No Flicker
High Quality Die-casting Aluminium
Wide Illumination Range
Life Span Up to 50,000 Hours
Excellent Thermal Dissipation
| Model | Color | Dimension | Cut-out Size | IP Level | Power | Light Source | CCT | CRI | Beam Angle | Luminous Flux |
| TD2301 | Matt White | D102*H80 | φ80 | IP20 | 3.5W | BRIDGELUX SMT |
3000K 4000K 6000K |
Ra80 | 90° | 180LM |

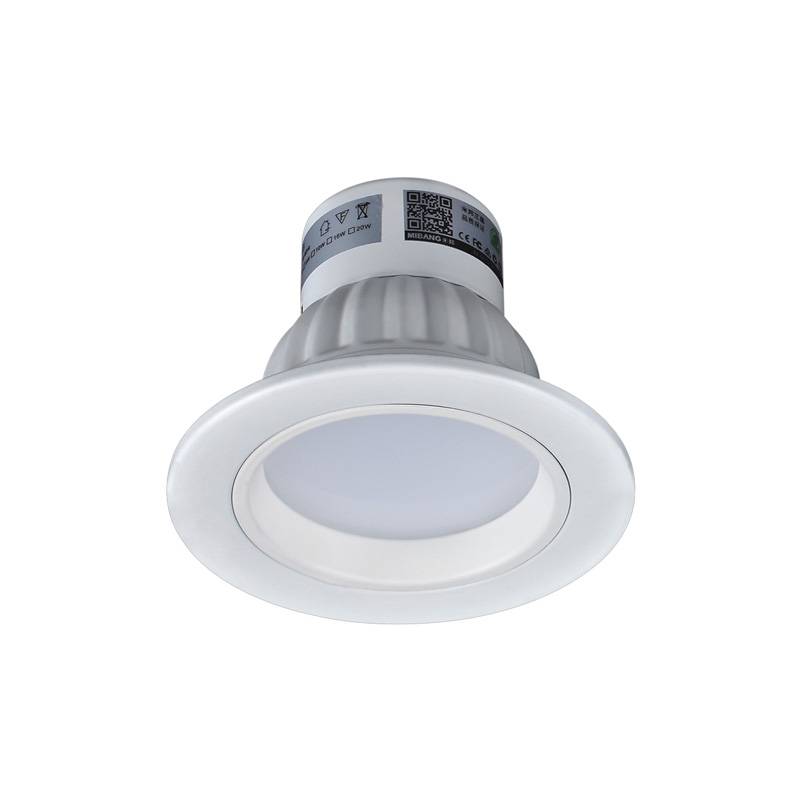

| TD2302 | Matt White | D114*H82 | φ90 | IP20 | 6W | BRIDGELUX SMT |
3000K 4000K 6000K |
Ra80 | 90° | 330LM |

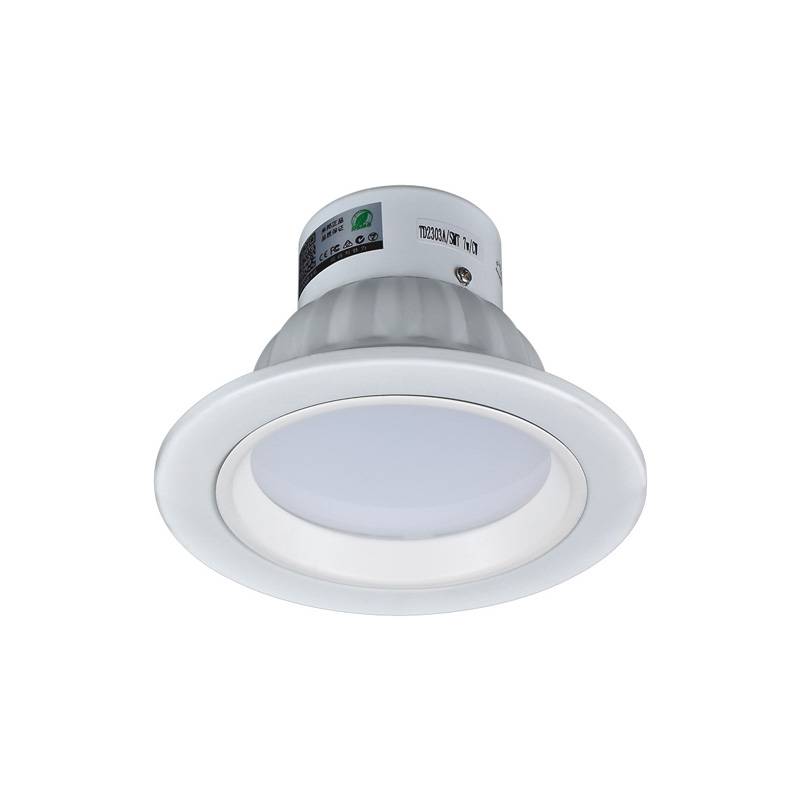

| TD2303 | Matt White | D132*H85 | φ105 | IP20 | 8W | BRIDGELUX SMT |
3000K 4000K 6000K |
Ra80 | 100° | 480LM |

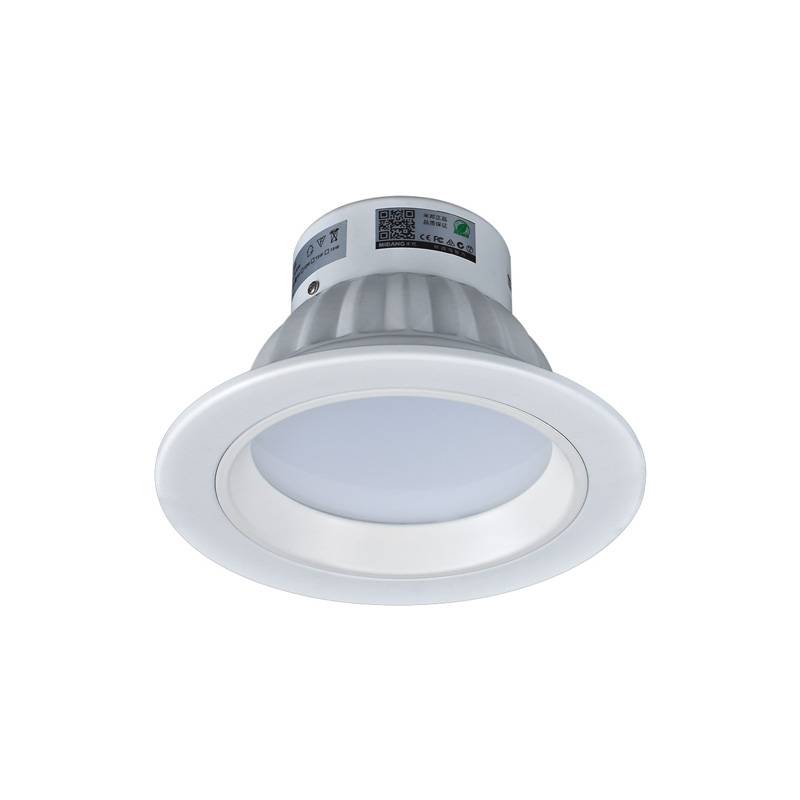

| TD2304 | Matt White | D158*H90 | φ125 | IP20 | 10W | BRIDGELUX SMT |
3000K 4000K 5000K |
Ra80 | 100° | 650lLM |
| TD2306 | Matt White | D195*H110 | φ165 | IP20 | 15W | BRIDGELUX SMT |
3000K 4000K 5000K |
Ra80 | 100° | 1080LM |

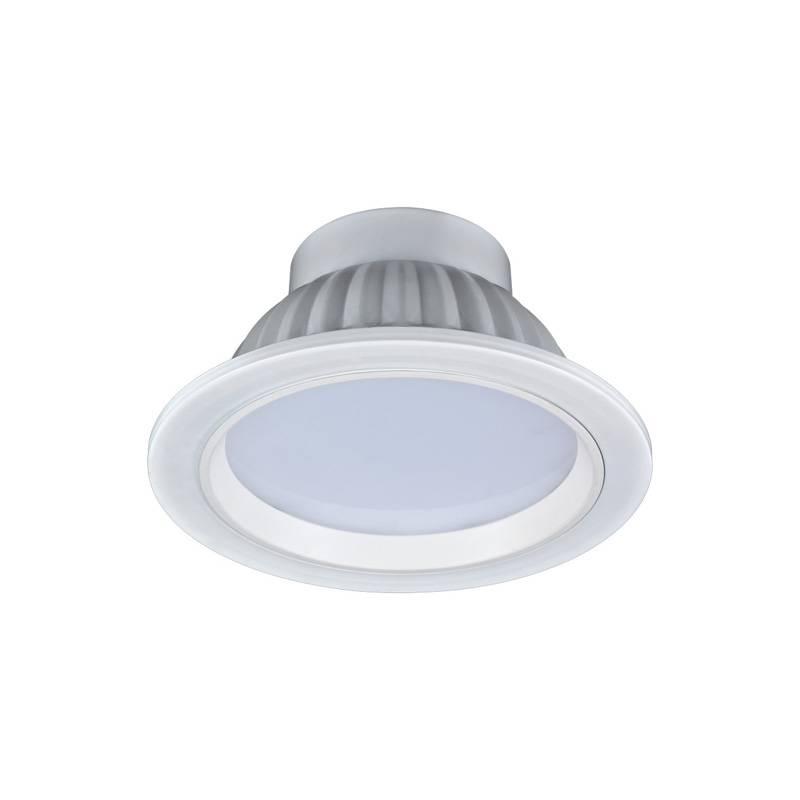

| TD2308 | Matt White | D230*H118 | φ200 | IP20 | 22W | BRIDGELUX SMT |
3000K 4000K 5000K |
Ra80 | 100° | 1700LM |
Trust us to be your partner in the LED lighting industry for our prolonged warranty and dedicated service.
