The smart SD91607 has square shade which can be adjusted angle freely to meet your needs. Regular frame and Trimless type for choosing. Acts as a unique LED spotlight fixture in places such as homes and office, making it easy to take your business global.
High Quality Aluminum
350° Rotatable And Tiltable At 30° Is Suitable For Different Scenarios
Premium Light Source
Single/Double Heads For Option
Effective Heat Dissipation
| Model | Color | Dimension （mm) |
Cut-out Size (mm) |
IP Level | Power | Light Source | Color Temperature | Color Rendering Index | Beam Angle | Lumen Flux |
| SD91607-150 | Sand White/Black/White/ Black | L82*W82*H157 | L75*W75 | IP20 | 7W | LUMINUS CHM-9-XD20 |
2700K 3000K 3500K 4000K 5000K |
Ra90 | 15°/24°/36° | 369LM |

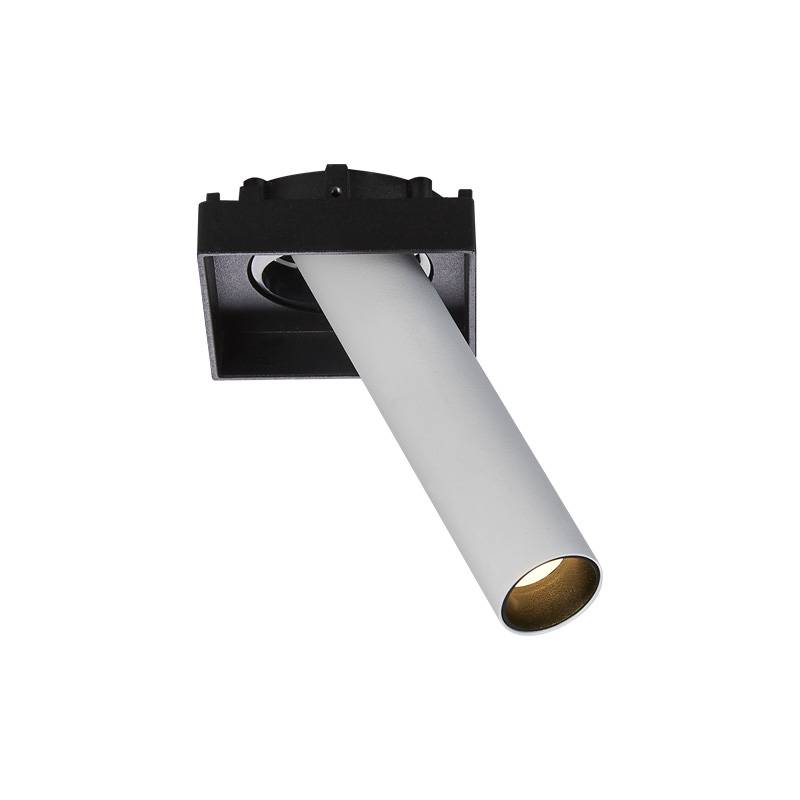

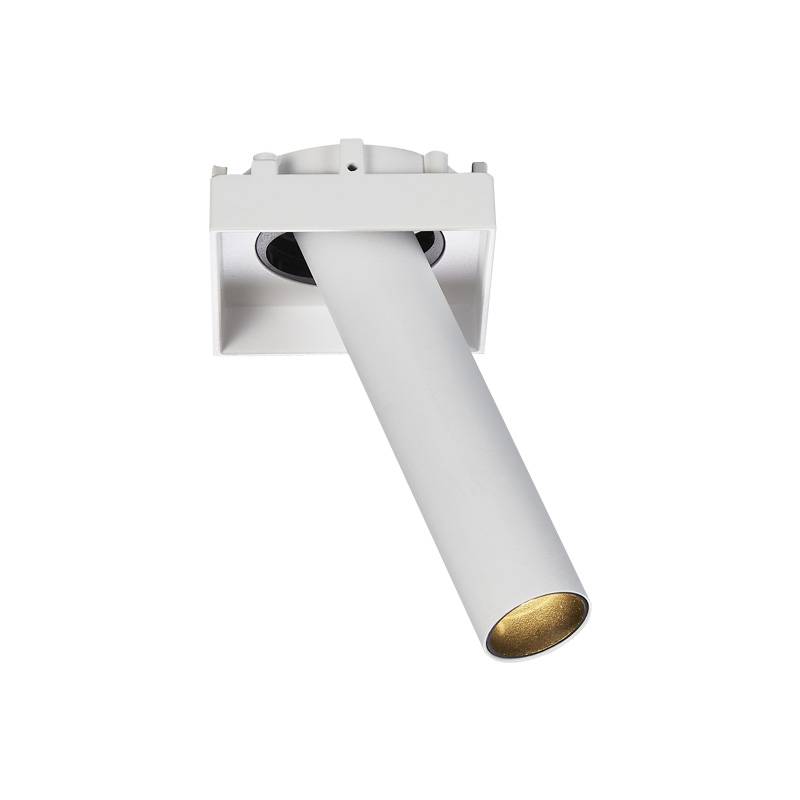

| WBS91607-150 | Sand White/White/Black Sand Black/White/Black |
L68*W68*H163 | L95*W95 | IP20 | 7W | LUMINUS CHM-9-XD20 |
2700K 3000K 3500K 4000K 5000K |
Ra90 | 15°/24°/36° | 369LM |

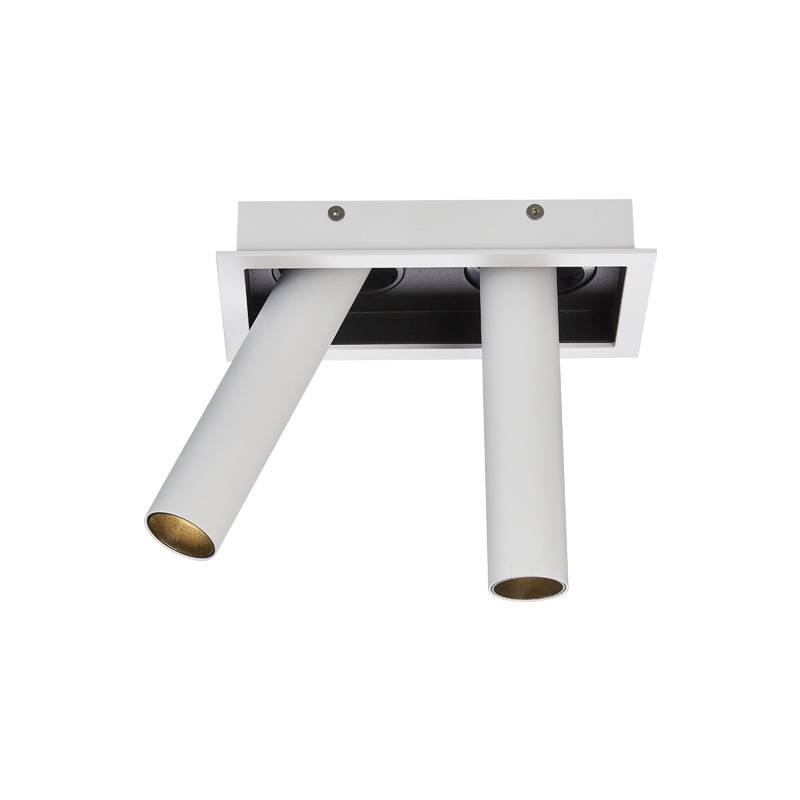

| SD91714-150 | Sand White/Black/White/ Black | L150*W82*H157 | L142*W75 | IP20 | 7W | LUMINUS CHM-9-XD20 |
2700K 3000K 3500K 4000K 5000K |
Ra90 | 15°/24°/36° | 2*369LM |

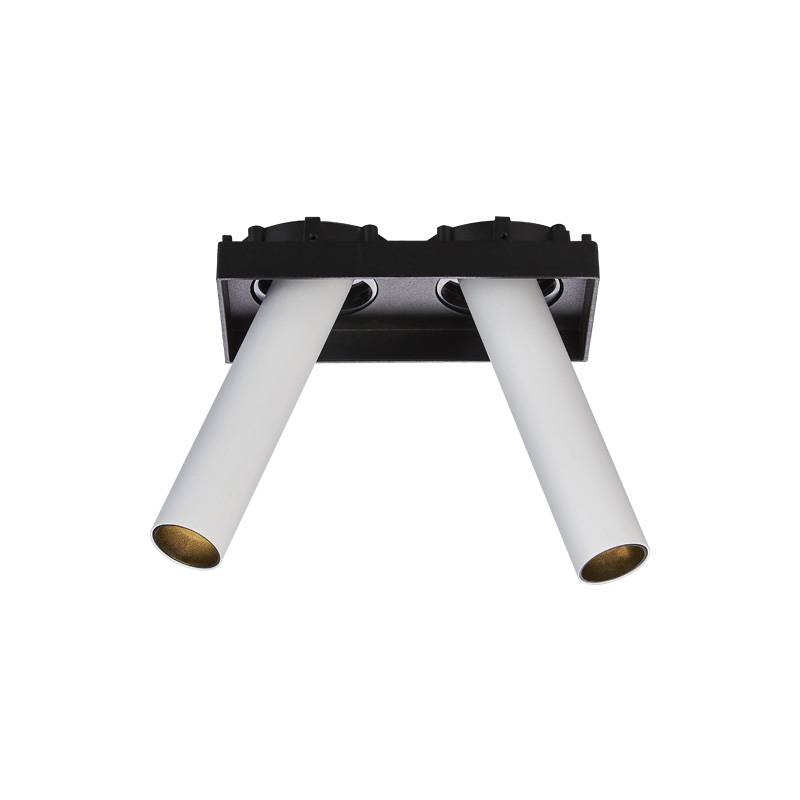

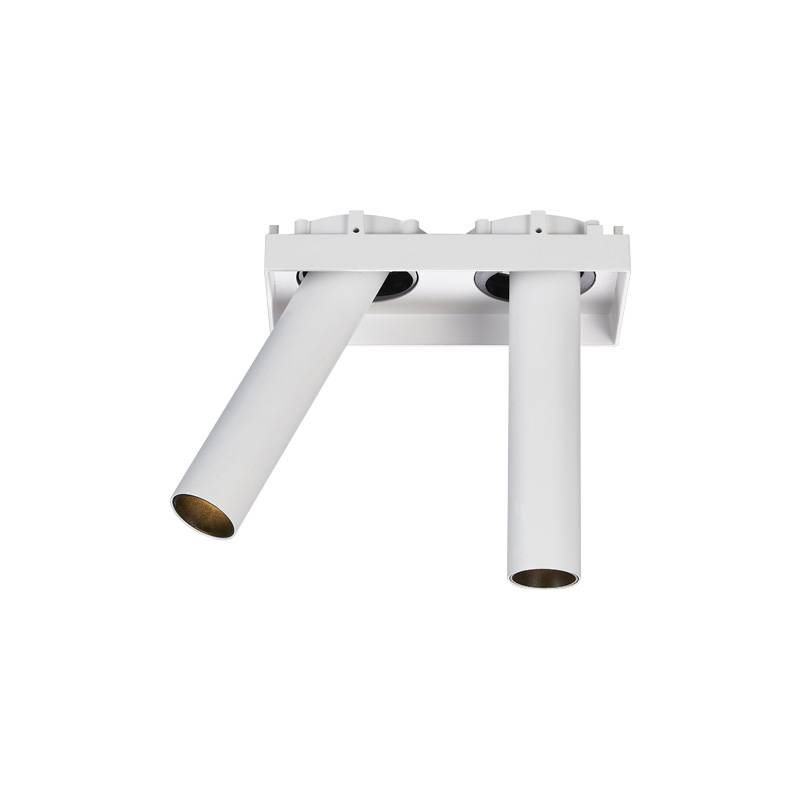

| WBS91714-150 | Sand White/White/Black Sand Black/White/Black |
L136*W68*H163 | L160*W90 | IP20 | 2*7W | LUMINUS CHM-9-XD20 |
2700K 3000K 3500K 4000K 5000K |
Ra90 | 15°/24°/36° | 2*369LM |
Trust us to be your partner in the LED lighting industry for our prolonged warranty and dedicated service.
