The smart SD862109 has a surface treatment with excellent texture feeling. Regular frame and Trimless type for choosing. Acts as a unique LED spotlight fixture in places such as hotel and villas making it easy to take your business global.
Deep Anti-glare
High-end Die Casting Aluminum
With Uniform Light, Perfect Light Spot And Soft Lighting
Triac, 0-10V, DALI Dimming For Option
Effective Heat Dissipation
| Model | Color | Dimension | Cut-out Size | IP Level | Power | Light Source | Color Temperature | Color Rendering Index | Beam Angle | Lumen Flux |

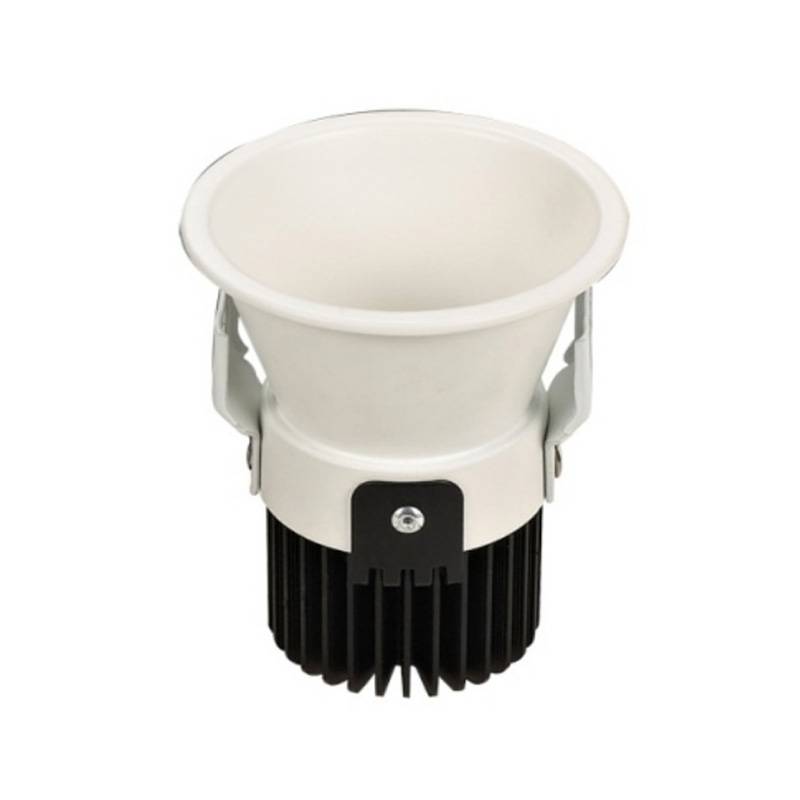

| SD862109 | Sand White | D82*H96 | φ75 | IP20 | 9W | CREE COB | 2700K 3000K 3500K 4000K 5000K |
Ra90 | 15°/24°/36° | 404LM |
| SD862212 | Sand White | D102*H120 | φ95 | IP20 | 12W | CREE COB | 2700K 3000K 3500K 4000K 5000K |
Ra90 | 15°/24°/36° | 737LM |

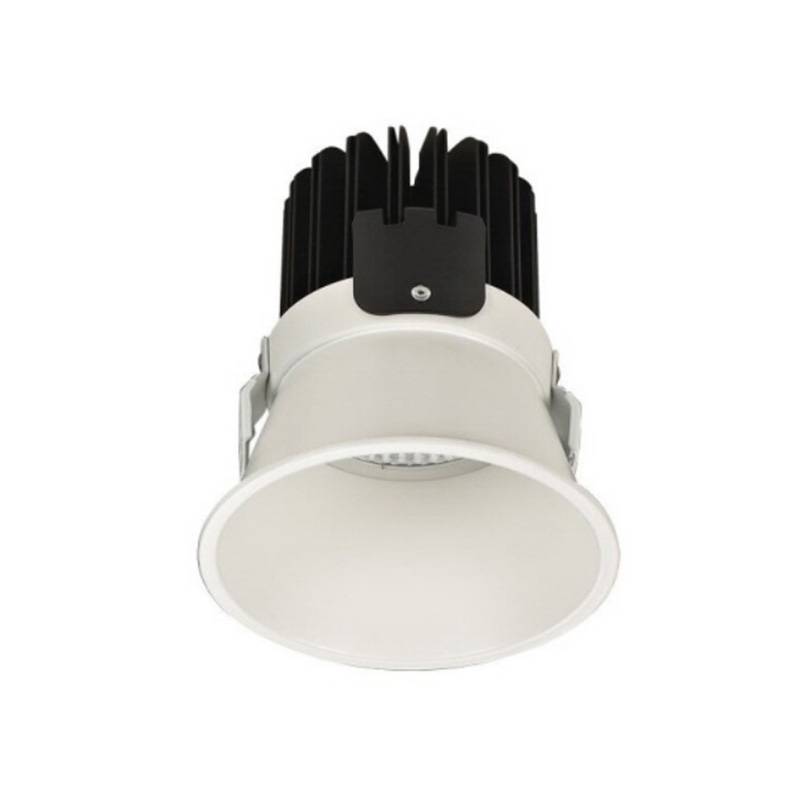

| SD862320 | Sand White | D122*H140 | φ115 | IP20 | 20W | CREE COB | 2700K 3000K 3500K 4000K 5000K |
Ra90 | 20°/30°/40° | 1183LM |

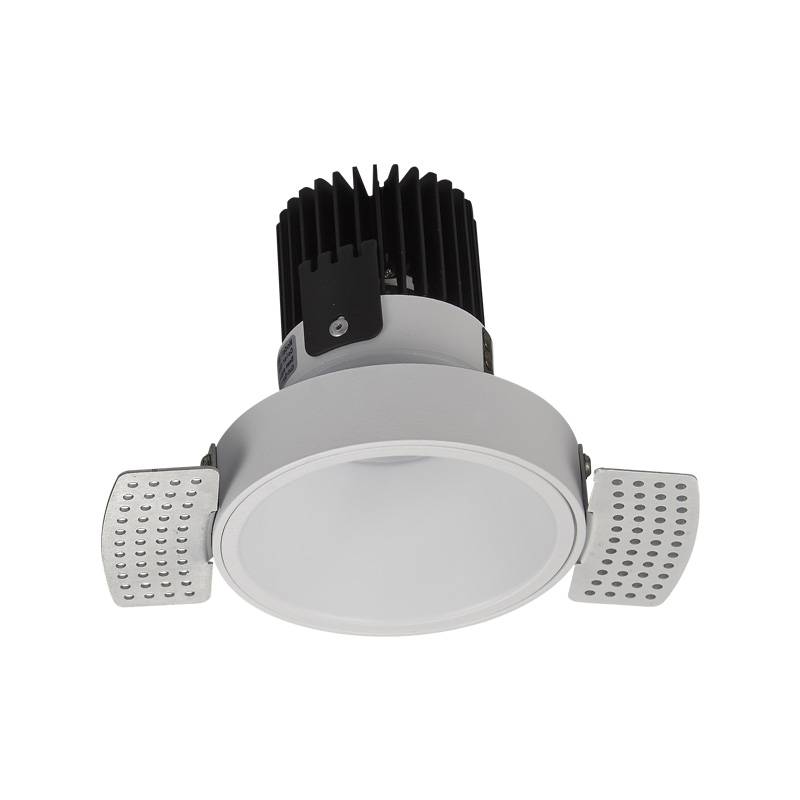

| SD12109 | Sand White | D82*H96 | φ95 | IP20 | 9W | CREE COB | 2700K 3000K 3500K 4000K 5000K |
Ra90 | 15°/ 24°/36° | 404LM |

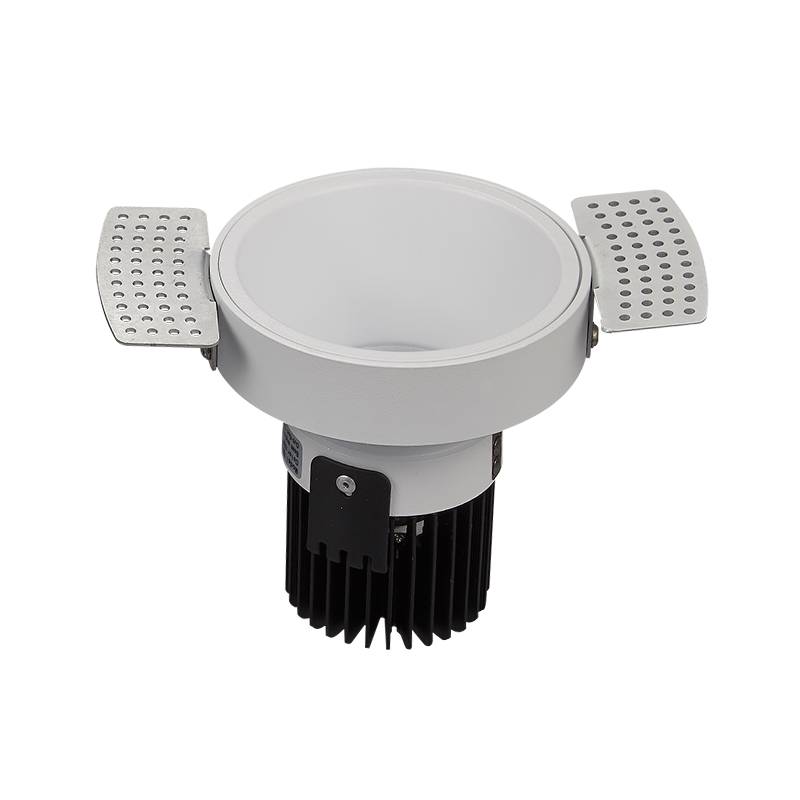

| SD12212 | Sand White | D102*H120 | φ115 | IP20 | 12W | CREE COB | 2700K 3000K 3500K 4000K 5000K |
Ra90 | 12°/ 24°/36° | 737LM |
| SD12320 | Sand White | D122*H140 | φ135 | IP20 | 19W | CREE COB | 2700K 3000K 3500K 4000K 5000K |
Ra90 | 20°/ 30°/ 40° | 1183LM |
Trust us to be your partner in the LED lighting industry for our prolonged warranty and dedicated service.
