SD23312

The smart SD23312 is rectangular and square LED linear spotlight. Regular frame and Trimless type for 12/20W. Acts as a unique LED spotlight fixture in places such as hotels,boutique and shopping mall making it easy to take your business global.

Highlights

  • img

    High Quality Aluminum

  • img

    One/two/five/ten/fifteen lamps for option

  • img

    High Quality Spring Buckel And Durable in use

  • img

    Premium Light Source

  • img

    Effective Heat Dissipation

Product Parameters

Model Color Dimension
mm)
Cut-out Size
(mm)
IP Level Power Light Source Color Temperature Color Rendering Index Beam Angle Lumen
Flux
SD23103 Sand White/black 45*45*H49 L37*W37 IP20 3W 0SRAM 3030 2700K
3000K
3500K
4000K
5000K
Ra90 30° 193LM

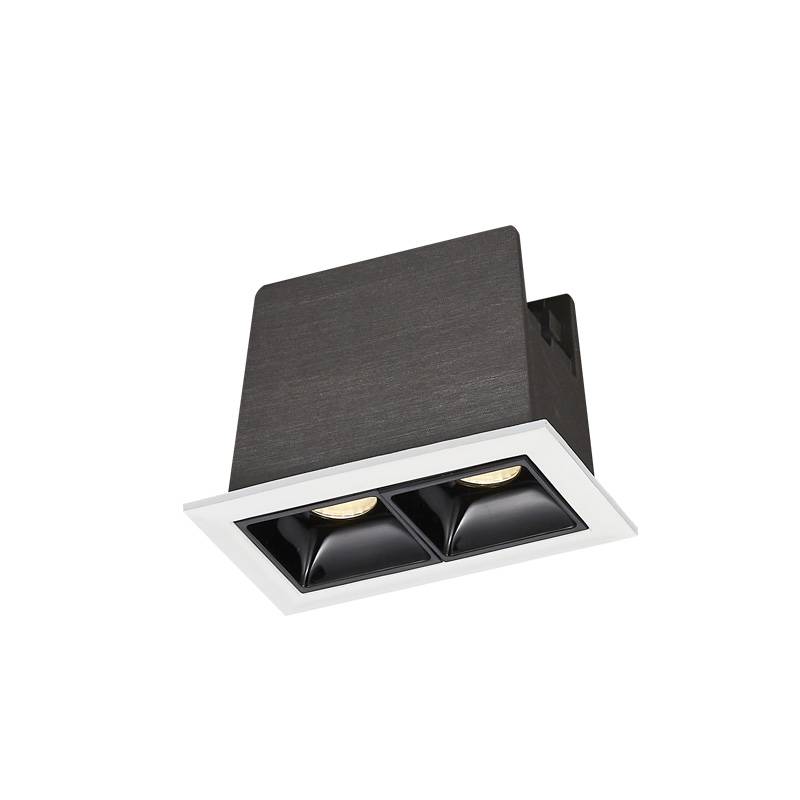

SD23206 Sand White/Black 75*44*H49 L68*W37 IP20 6W BRIDGELUX
SMD
2700K
3000K
3500K
4000K
5000K
Ra90 24°/36° 385LM
SD23312 Sand White/Black 147*44*H49 L140*W37 IP20 12W BRIDGELUX
SMD
2700K
3000K
3500K
4000K
5000K
Ra90 24°/36° 811LM

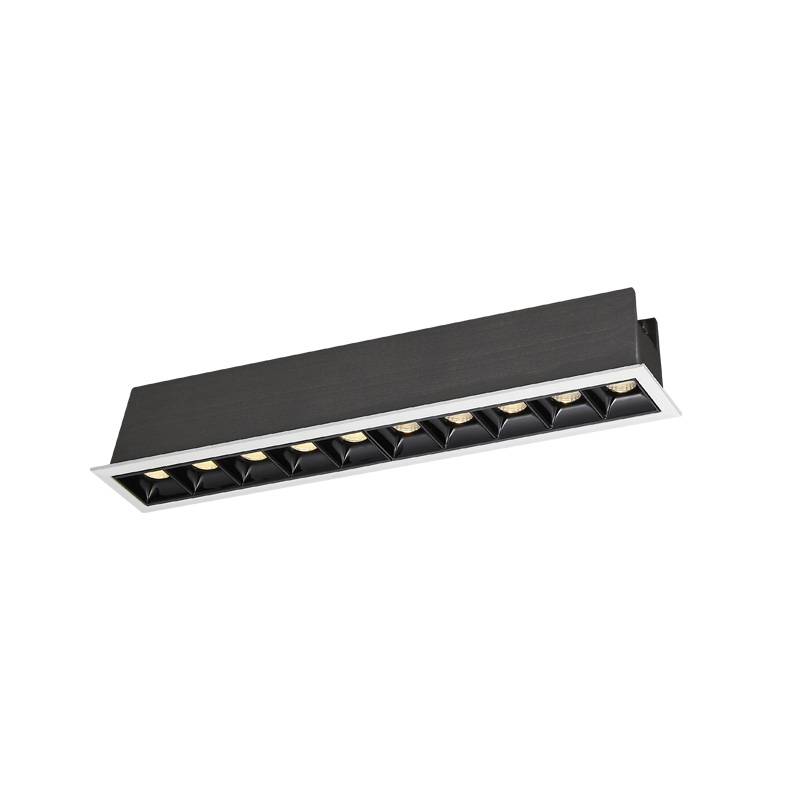

SD23420 Sand White/Black 280*44*H49 L273*W37 IP20 20W BRIDGELUX
SMD
2700K
3000K
3500K
4000K
5000K
Ra90 24°/36° 1396LM
SD23530 Sand White/Black 412*44*H49 L405*W37 IP20 30W BRIDGELUX
SMD
2700K
3000K
3500K
4000K
5000K
Ra90 24°/36°  2151LM

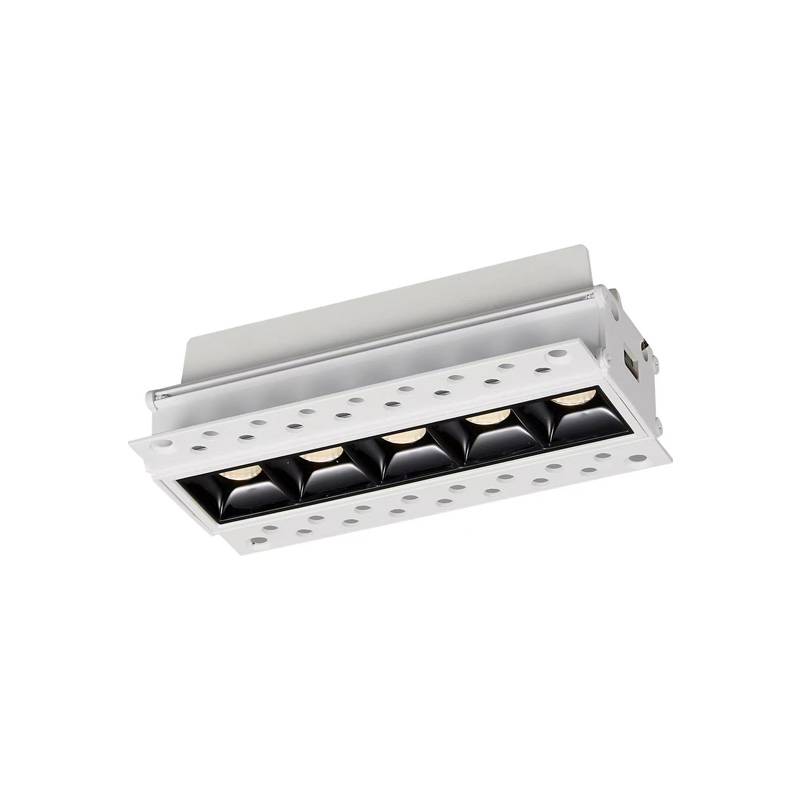

WBS23312 Sand White/Black L144*W76*H49 L146*W50 IP20 12W BRIDGELUX 2700K
3000K
3500K
4000K
5000K
Ra90 24°/36° 811LM
WBS23420 Sand White/Black L277*W76*H49 L280*W50 IP20 20W BRIDGELUX 2700K
3000K
3500K
4000K
5000K
Ra90 24°/36° 1396LM
