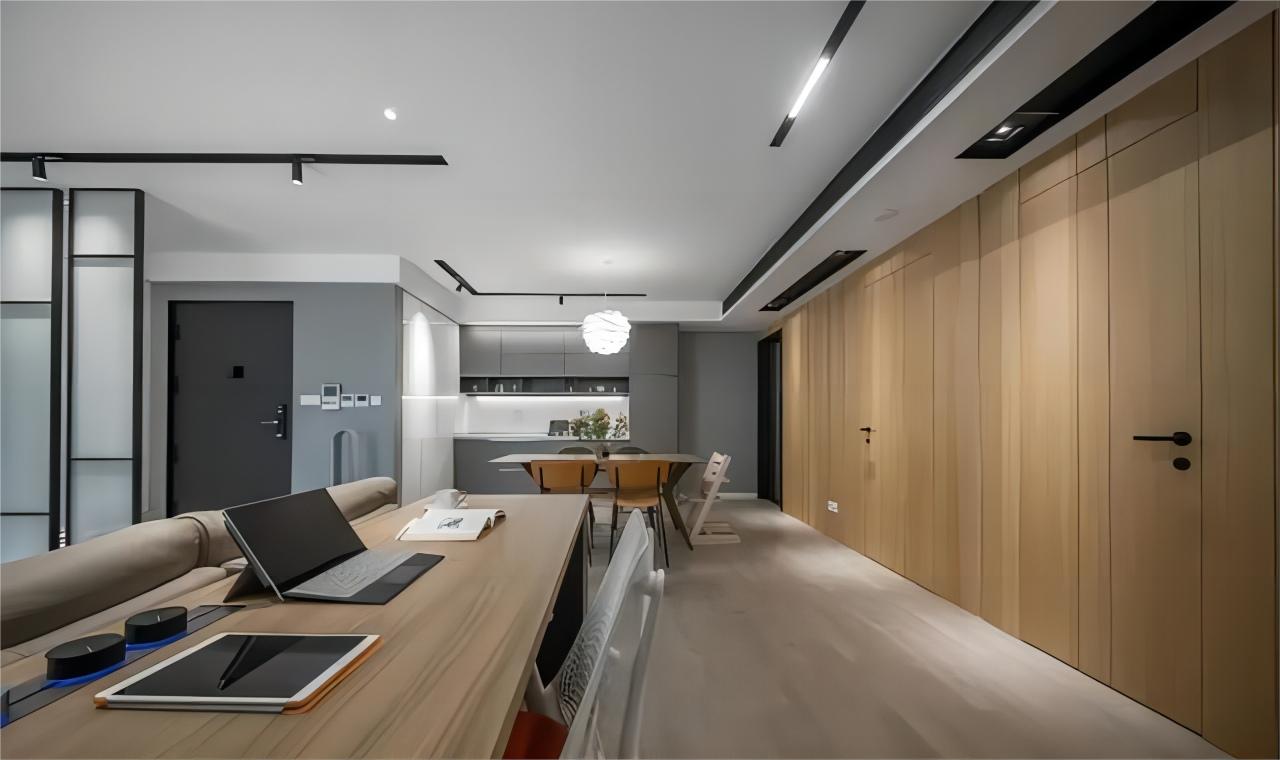

With the popularity of minimalist style and the rise of no main lamp design, we can obviously feel in the space lighting design, the single point layout of spotlight has been unable to meet the needs of multi-point multi-level lighting. Magnetic suction track lamp because of its flexibility, fashion has become the mainstream of the use of the design and full of future technology sense. It uses the rail line + combination + modeling direction, can match their own line style, to create a beautiful, atmospheric, flexible multi-level lighting environment.
What is magnetic track light？
Magnetic track light is a kind of modern linear lighting fixtures, which combines the advantages of traditional track lights, using magnetic technology to attract the lamp components on the track, the light components within the conductive sheet and the conductive strip within the track body is elastic contact, so as to provide power for the lamp components, can be lit. Magnetic track lighting usually adopts low voltage design, such as DC48V or DC24V, which makes the installation and maintenance safer, more convenient and flexible.
Composition of magnetic track light

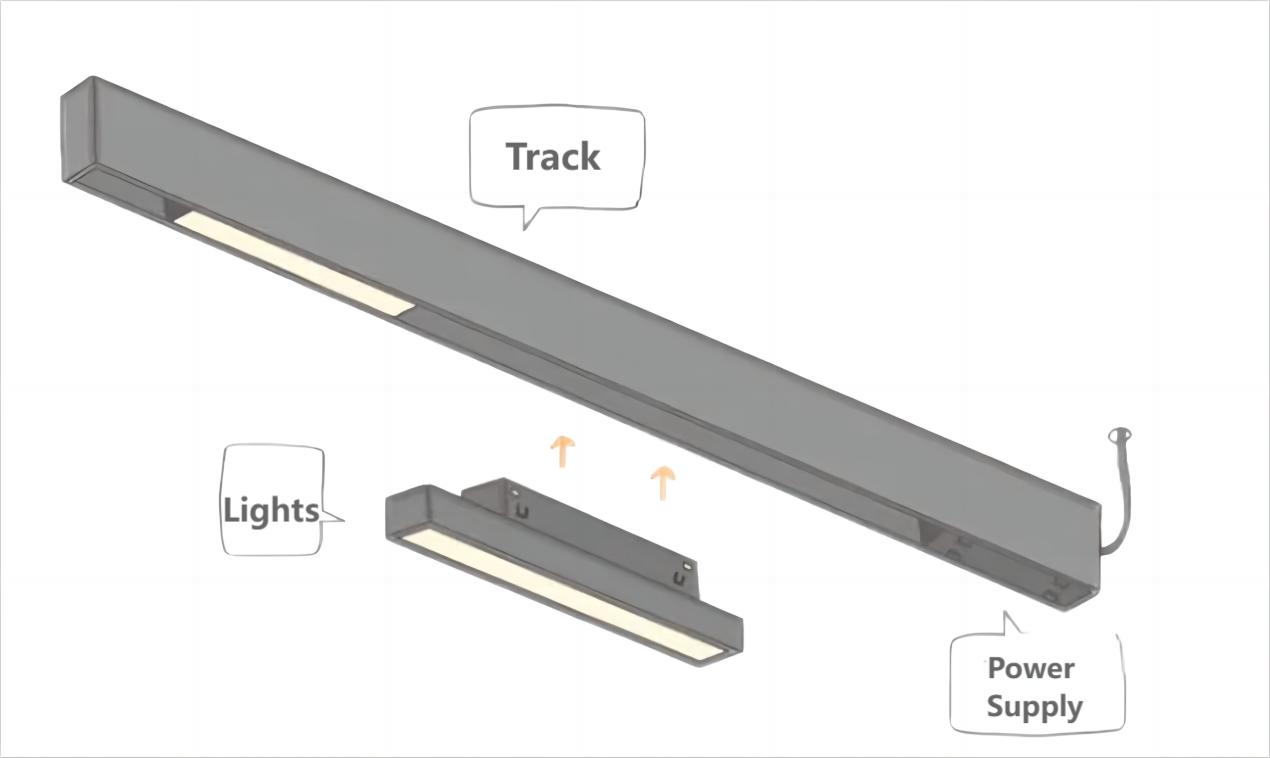

As a kind of lighting system which can be combined freely according to the demand, it mainly consists of three parts: track, magnetic lights and power supply (also called driver). The power of the power supply can be determined according to the number of light sources. Generally, the total power of the lights can not exceed 80% of the power supply.
Types of magnetic track

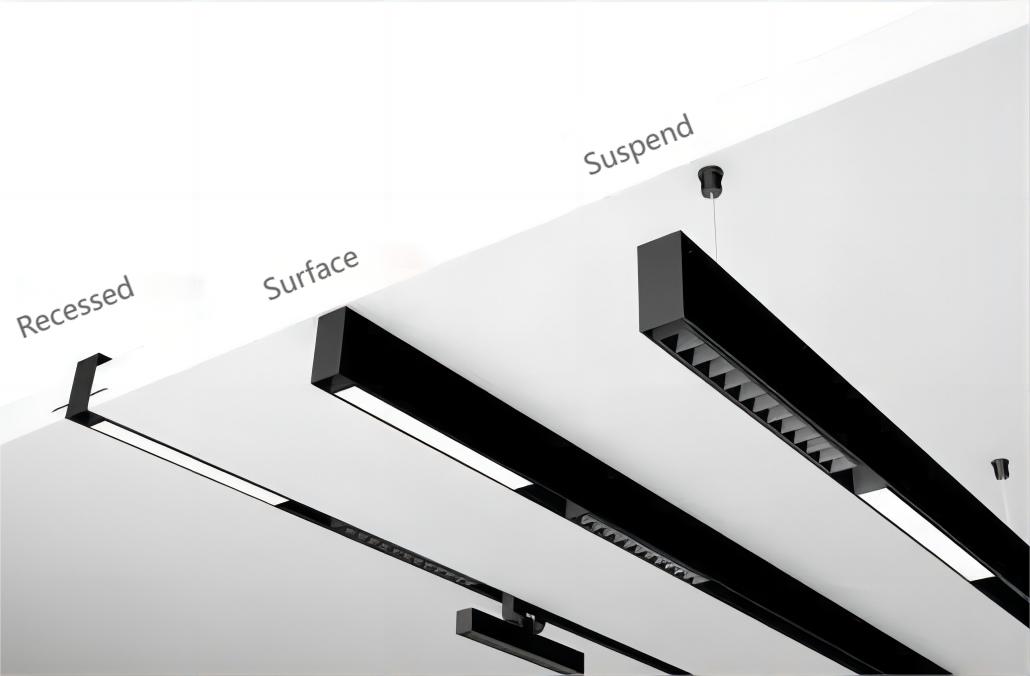

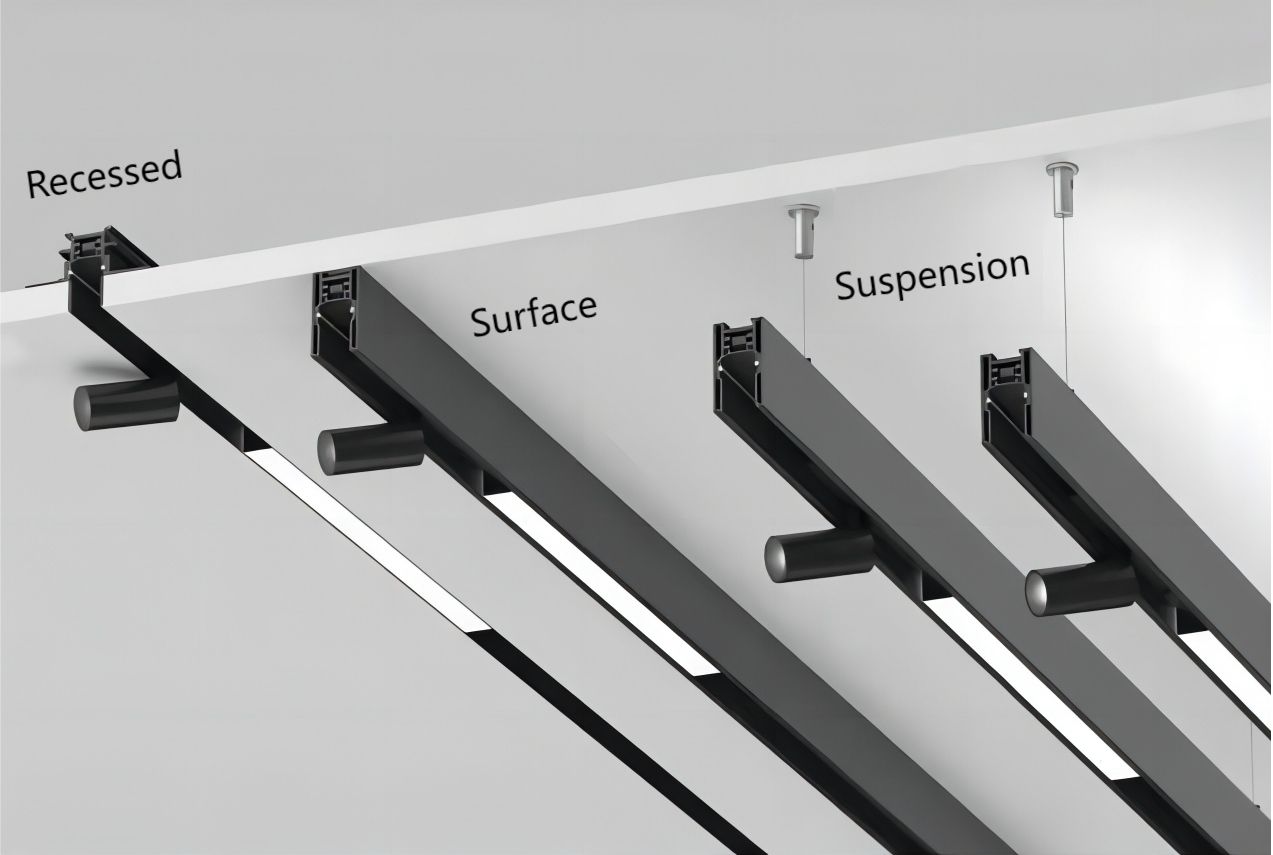

Magnetic track can be free to choose the track type and length, generally there are recessed magnetic track, surface mounted magnetic track, suspended magnetic track these 3 types. Recessed in the shape is the most minimalist, the overall line is more delicate, but the installation is more difficult, you need to complete the preliminary pre-embedded on the ceiling; surface mounted and suspended track do not need pre-embedded, and can be achieved without the ceiling.

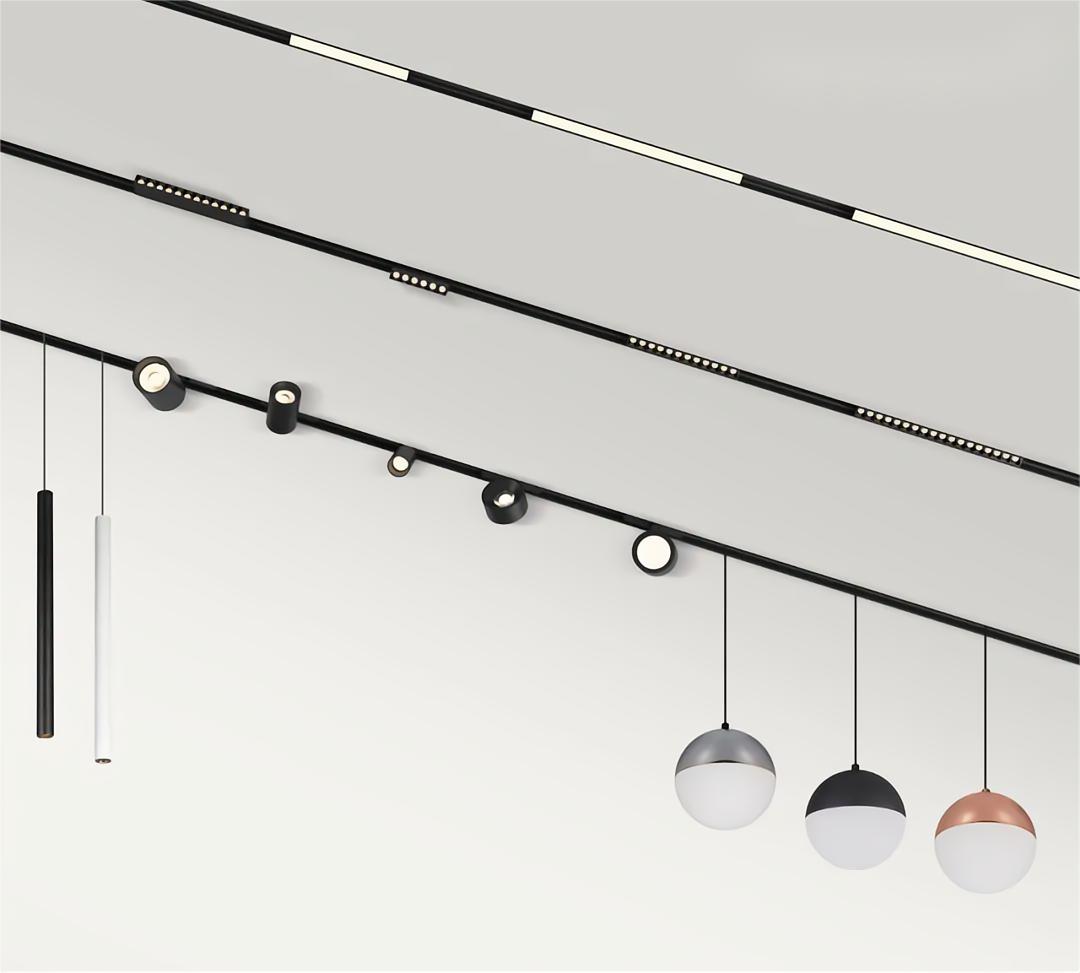

Types of magnetic track lights

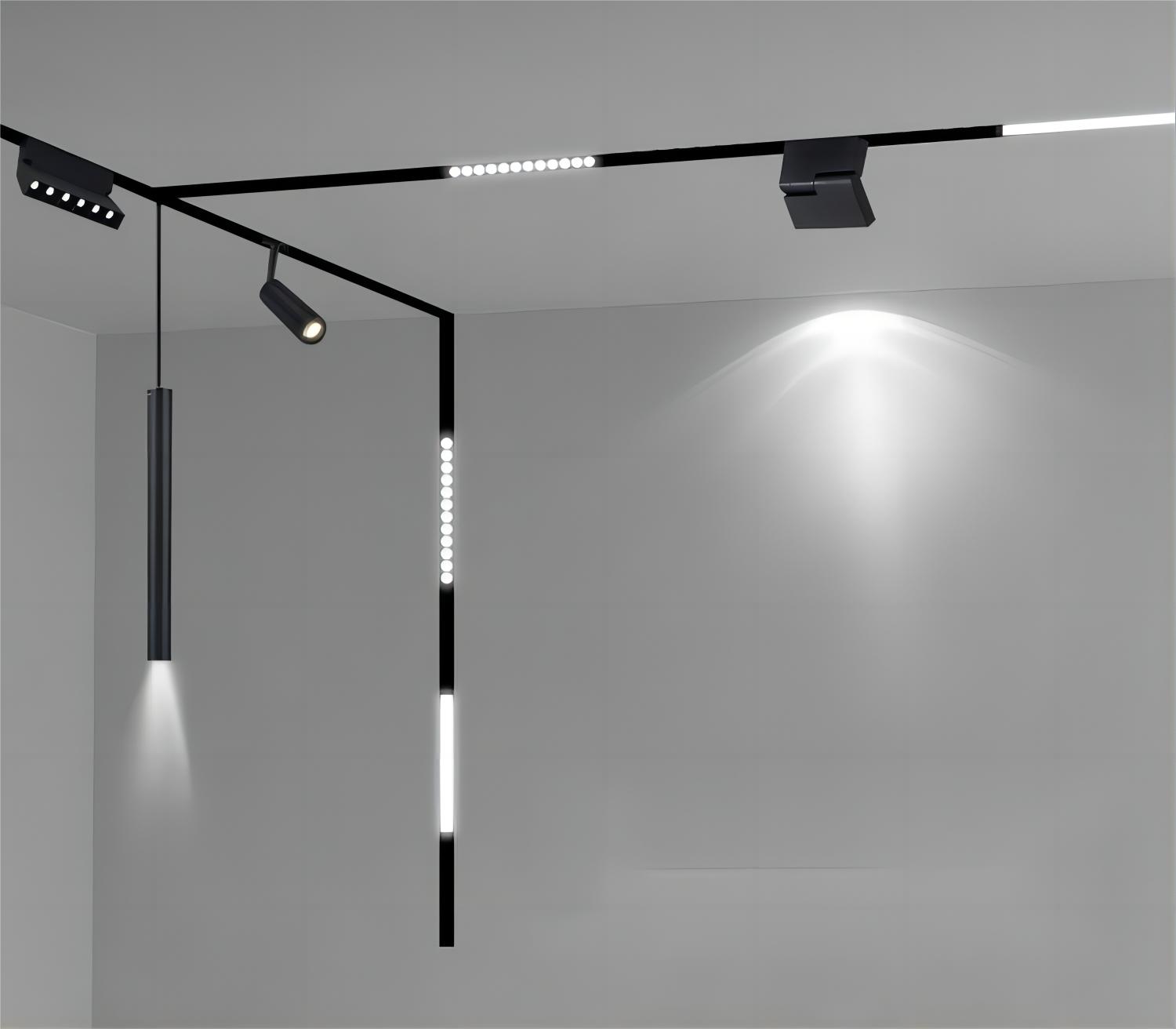

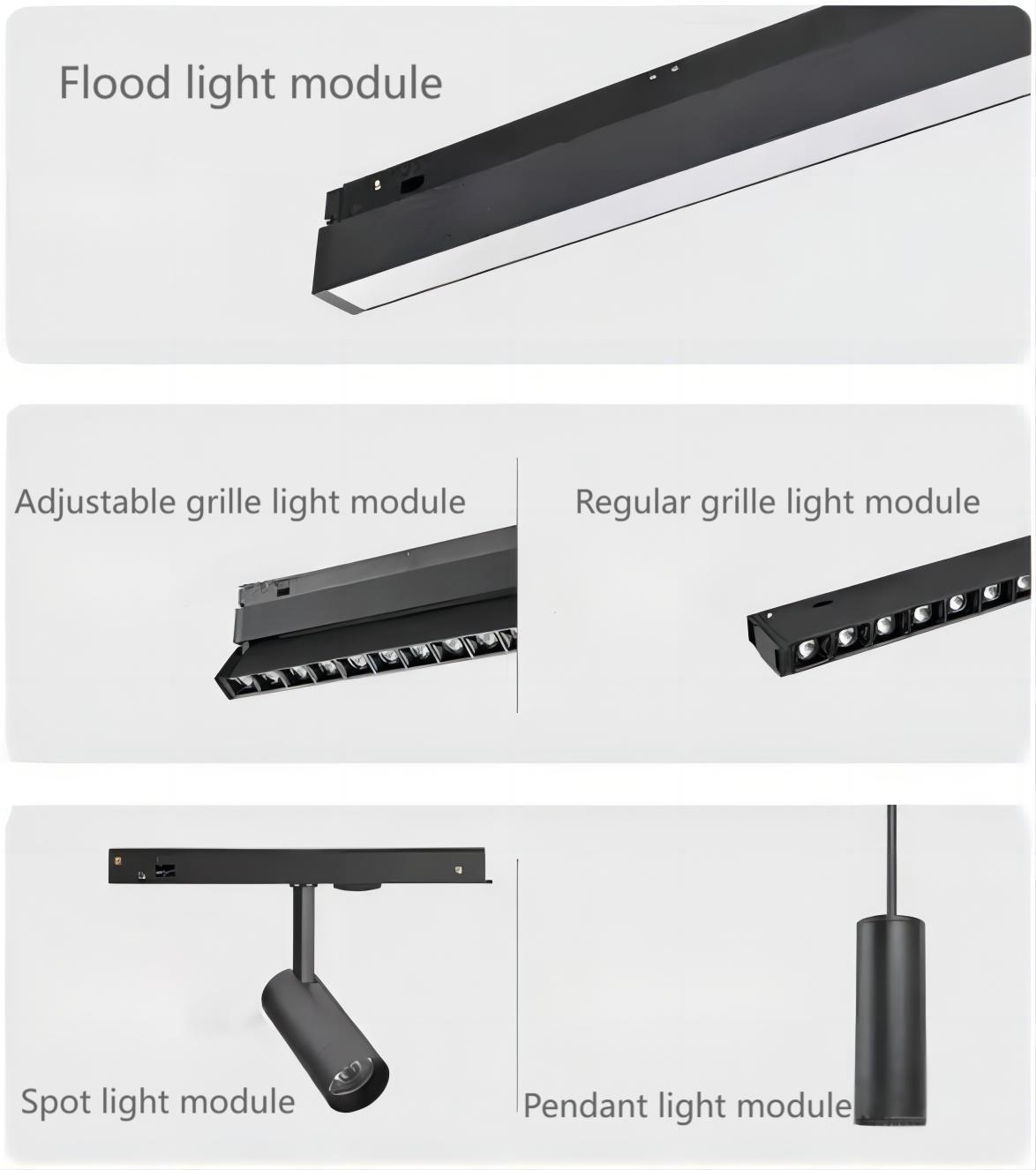

A track can be arbitrarily combined with a variety of different shapes of lights to achieve functional and visual effects. Magnetic track lights can be freely matched according to the needs of the module of lighting system, generally have a flood light module, adjustable grille module, regular grille module, spot light module, pendant spot light module of these five type.
The floodlight module light is uniform, improve the space brightness, to meet the basic lighting;
The adjustable grille module can meet the demand of multi-angle lighting;
The spot light module can adjust the angle to achieve precise focus on the basis of satisfaction;
The pendant spotlight module can achieve the close range lighting effect.
The installation is also very convenient, without other auxiliary tools, the lights can be easily moved in the track, and the lighting components can be added according to the actual demand. Make the whole space look clean, agile, bring the visual effect of minimalist extension.

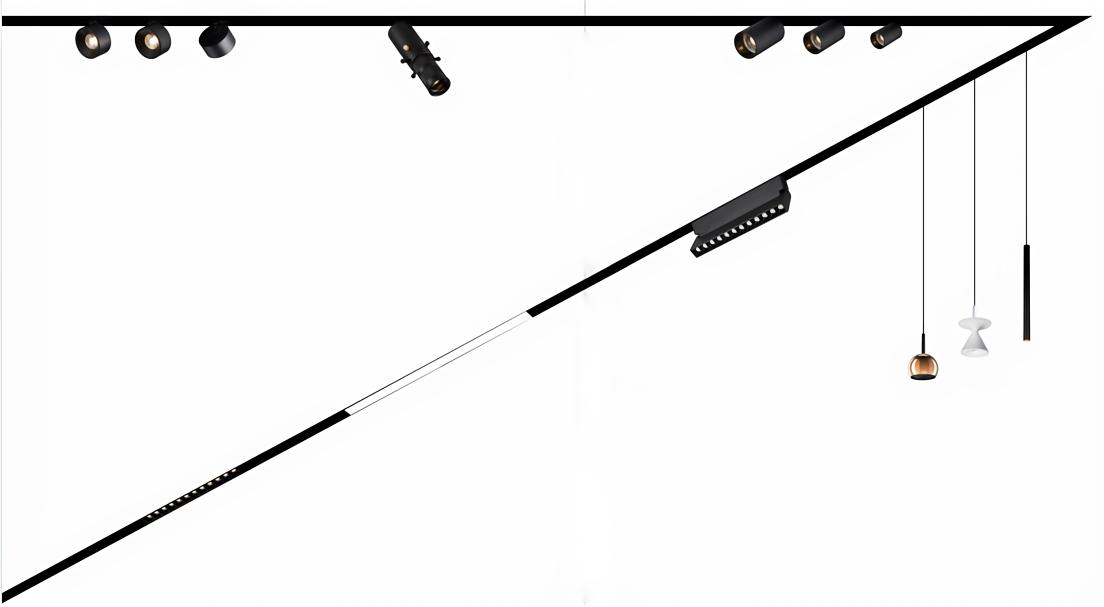

There are 6 kinds of lights suitable for magnetic track:

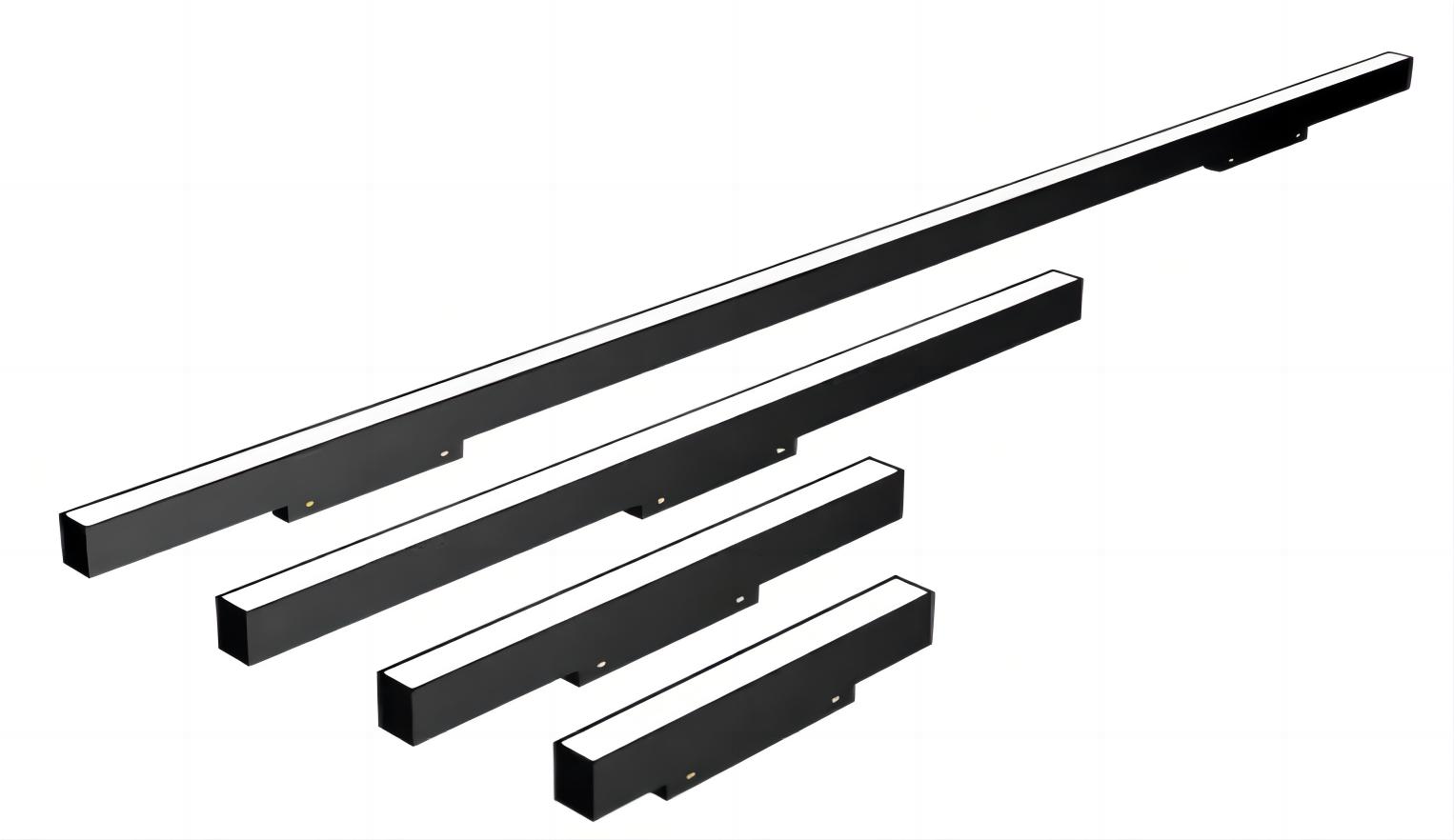

4.1 Magnetic flood light
Generally used for the main lighting, the beam angle is about 120°.

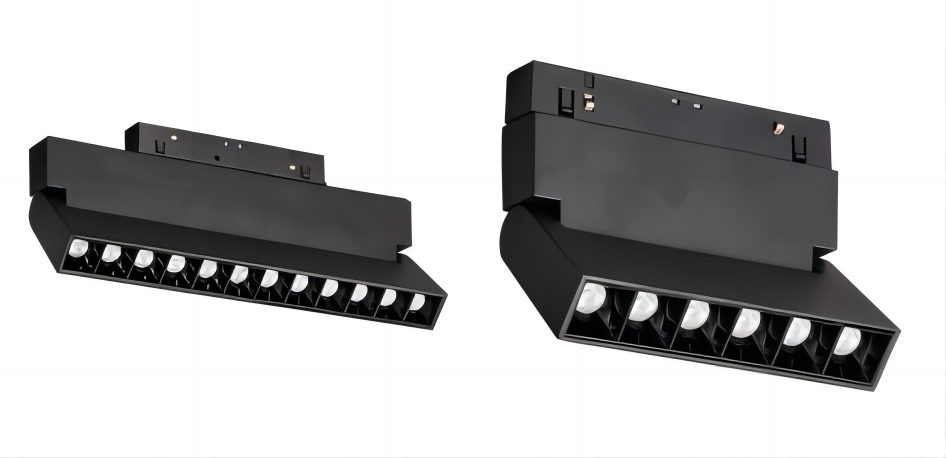

4.2 Magnetic adjustble grille light
It can be used for main lighting, background wall washing and key lighting, beam angle of about 30°, adjustable direction, wide applicability.

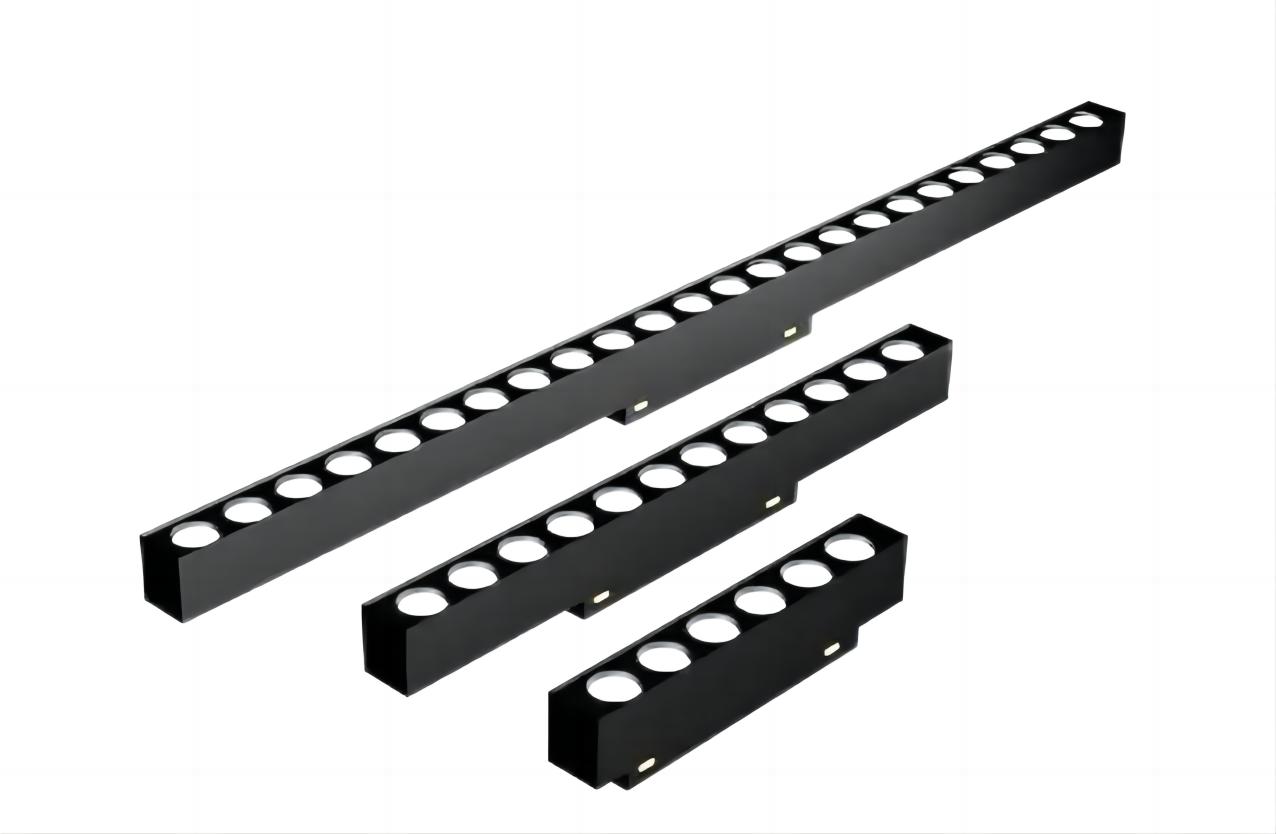

4.3 Magneticregular grille light
Suitable for main lighting and key lighting, with a beam angle of about 30°.

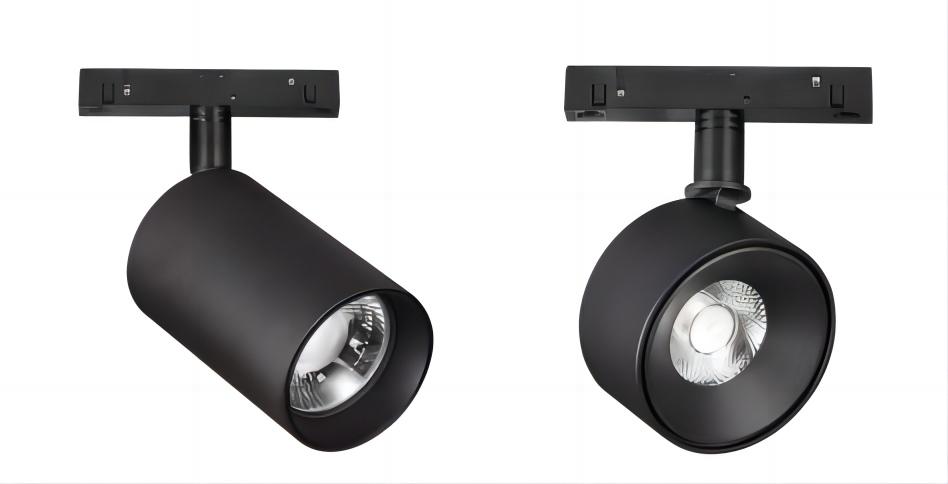

4.4 Magnetic spotlight
For background wall washing and key lighting, the beam angle of about 24°, can flexibly adjust the lighting direction.

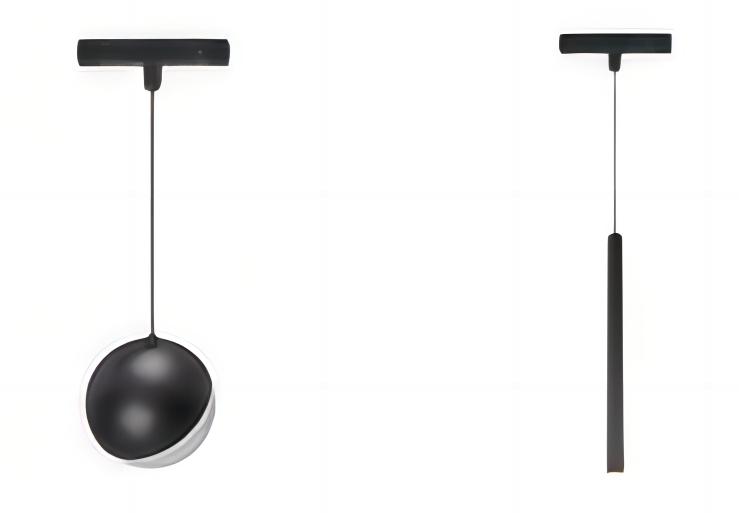

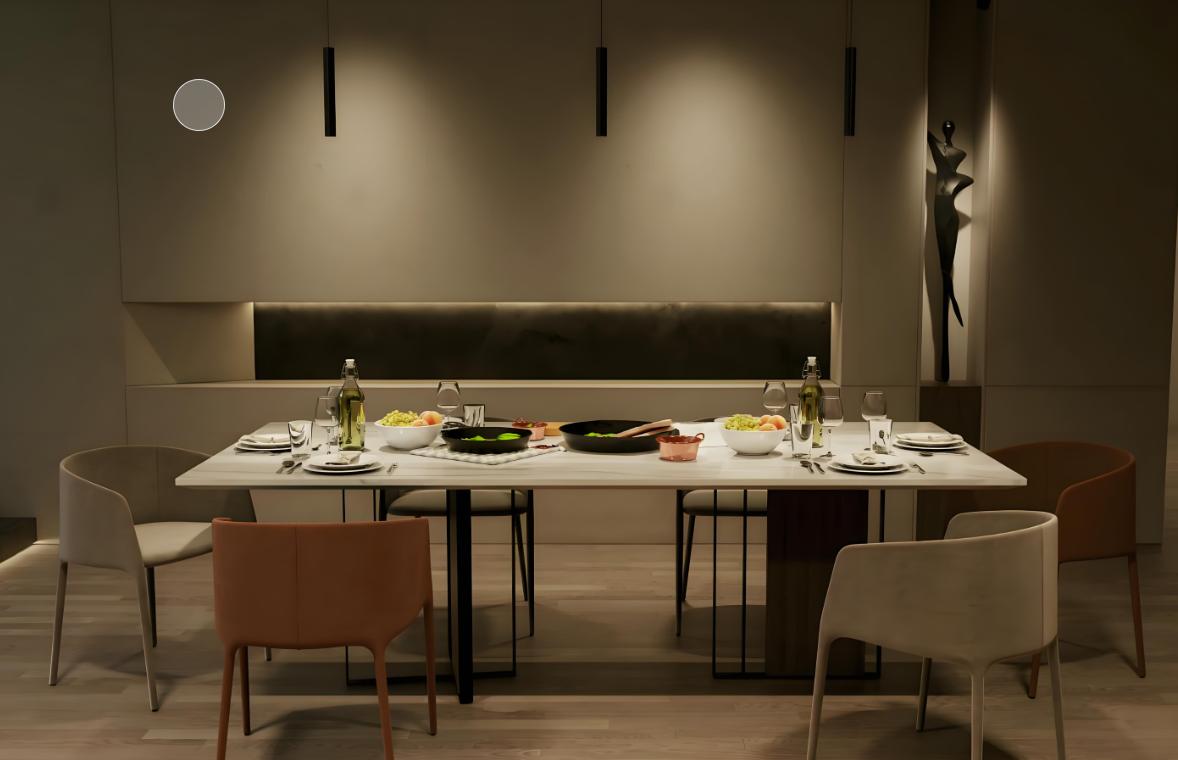

4.5 Magnetic pendant light
Can be used for dining room, bar, front desk and other space, the beam angle of about 24°:

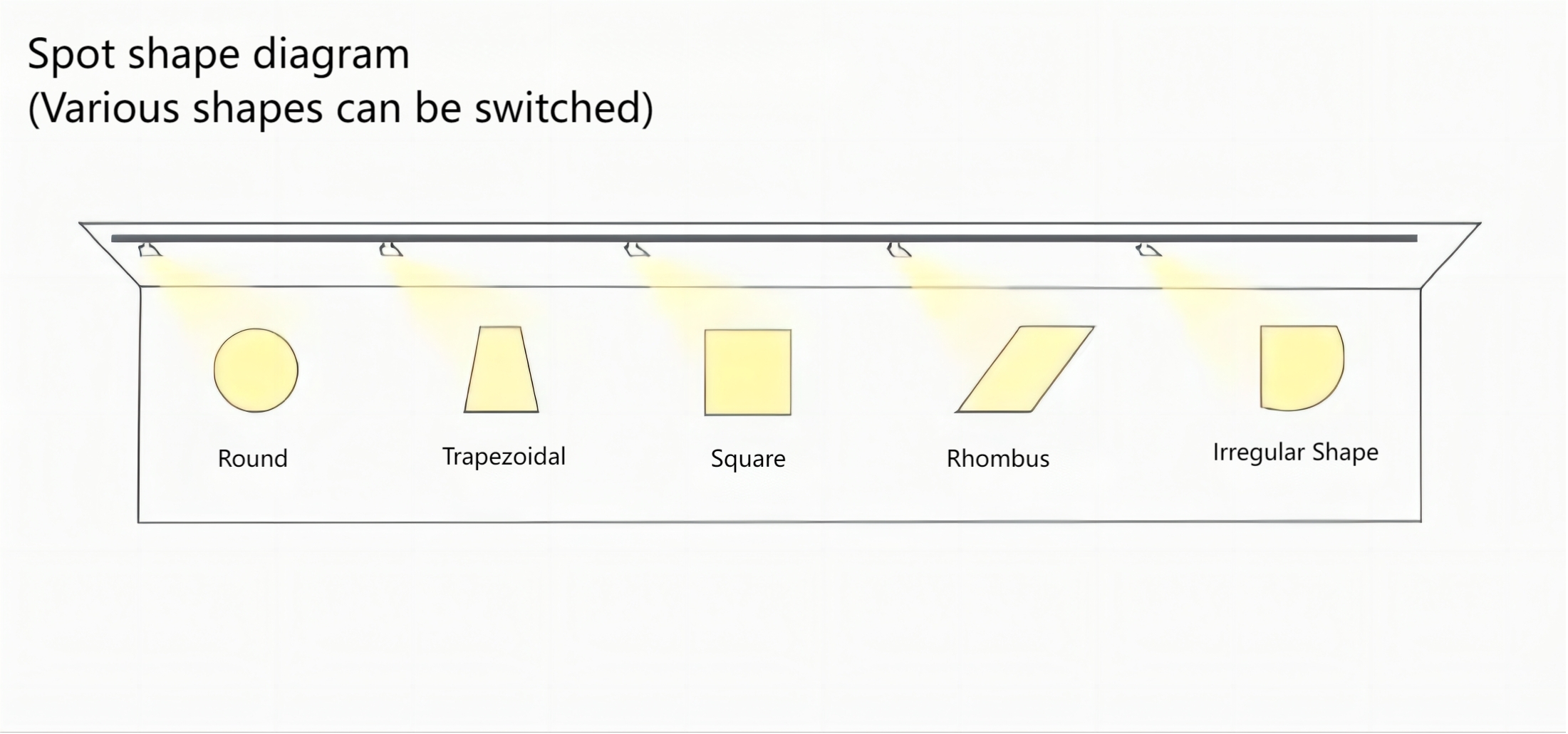

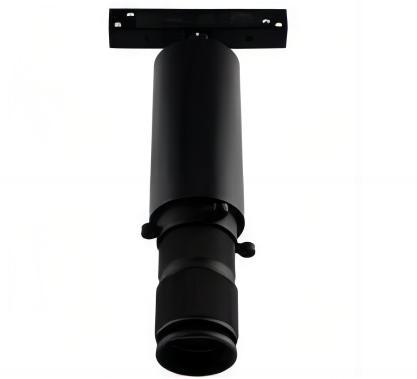

4.6 Magnetic cutting light
In addition to the ordinary magnetic spotlight to do the key lighting of the wall painting, you can also choose magnetic cutting light, it can be switched a variety of spot shapes, for us to create a more advanced sense of lighting for the wall painting.
Accessories for magnetic track lights
5.1 Type of power supply (driver)
Magnetic track light installation needs to use the power supply, 220V AC conversion to DC24V or DC 48V, to prevent the danger of electric shock, so the installation must be equipped with a special power supply for the magnetic track light. General power supply (driver) are divided into two types: external and built-in power supply.

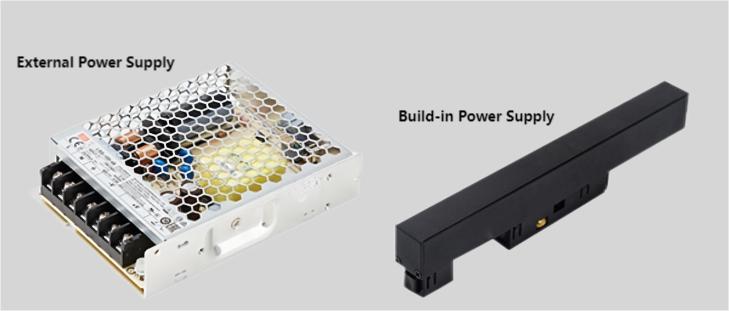

A. What’s the difference between external power and build-in power supply
External independent power supply is usually in the ceiling, you need to reserve access ports in the ceiling. Built-in integrated power supply is sucked inside the track like track light.
B. What is the wattage of the power supply bears?
Power supply bears 80% power, such as the power supply is 100W, it is recommended to match the total wattage of the light module does not exceed 80W; more than the wattage may reduce the service life.
5.2 Style accessories for the magnetic track light

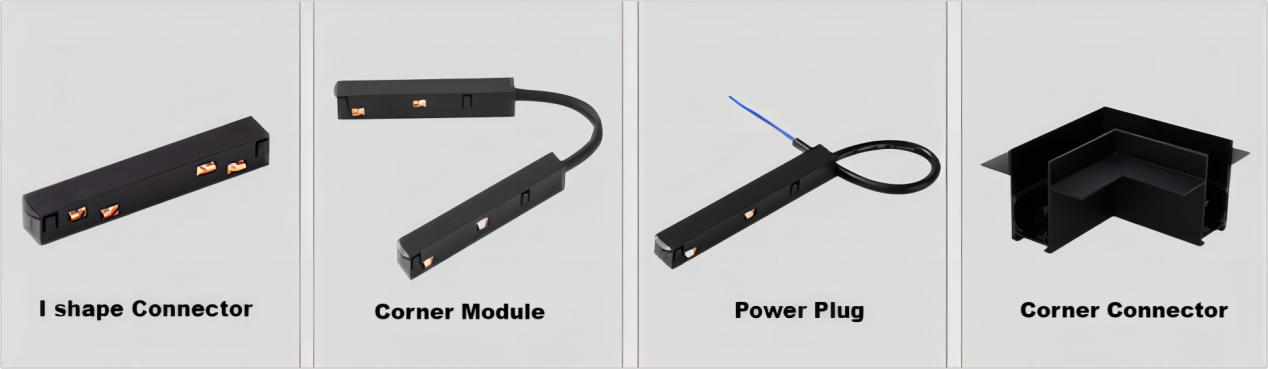

Magnetic track light through different track accessories, can achieve a different splicing way. Divided into I straight shape connector , corner connector, universal connector, give space infinite possibilities. Magnetic track can be freely and flexibly spliced, the shape of a variety of changes.
Pros and Cons of the magnetic track light
6.1 Advantages of the magnetic track light
Magnetic track light is a new type of flexible installation and movement, with the advantages of high efficiency, energy saving, environmental protection, easy maintenance and so on, widely used in a variety of indoor space. The installation of magnetic track light needs to be prepared, and follow the “safe, reasonable, beautiful” wiring principle, reasonable arrangement of the quantity and location of lightings.
A. Beautiful shape, widely used
Magnetic track light has a relatively new style and a sense of fashion so many young people will prefer it. The form of this kind of light fixture is linear and minimalist style, can highlight a variety of styles of modeling and design, enhance the sense of space level.
B. Lighting is powerful, free and flexible
The design of magnetic track light is modular, whether it is a pendant light or downlight or other types of lights, can be used for magnetic track light. Of course, it can also be designed on its own; magnetic lights are all on the track, do not need to open more holes, hide the line, and can be equipped with different lights.
C. High safety

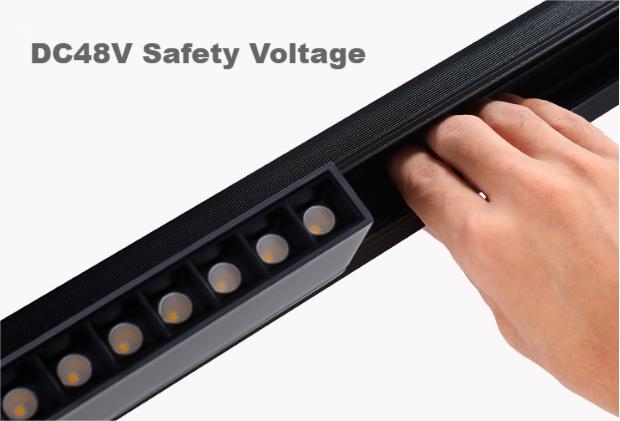

Most of the magnetic lights use DC24V or DC48V low voltage design, there is no danger of electric shock when installing and replacing lights or touching the track directly with hands. At the same time, the light has a safety buckle stuck in the inner wall of the track, press the insurance button to release the buckle, outside to strengthen the magnetic, no need to worry about the lights accidentally be touched off, double insurance is safer.
D. Easy installation and maintenance
Only need to pre-lay the track, the lights can be sucked up in a second. If the light is broken, loosen the buckle and take it down directly to repair or replace it. Convenient disassembly, compared with traditional lights maintenance is not troublesome. No ceiling can also be installed, everything is on the track, if use of surface or suspended mounted track, do not need to open more holes, hide the line，etc.
6.2 Disadvantages of the magnetic track light
Relative with the regular track lights, the price of magnetic track lights will be expensive, magnetic track light is popular in nearly two years, there are certain experience for carpentry and electrician master requirements, if the master installed for the first time, there may be installation errors, the early communication cost will be relatively higher.
Application scenarios of magnetic track light
Magnetic track light has a strong applicability, a magnetic track can support different types of lighting modules, so the application scenarios are more extensive, can be used as basic lighting, key lighting and decorative lighting. Now the use of magnetic track light is the lighting design is often used in the lights, with the right will become the highlight of the design, with the wrong will form a visual disaster. So how should we use the magnetic track light to achieve basic lighting, key lighting, local lighting and decorative lighting?
7.1 Magnetic lights in the basic lighting
It mainly provide light for horizontal lighting such as ceiling, wall, floor, curtain, etc. The inactive linear module (flood, grille), and uniform and soft light for the environment, while the grille module anti-glare concentration is suitable for the living room sofa tea table to enrich the environmental lighting level. Used in home, office, hotel and other places without main light design, can make the space lighting without dead angle, the light is uniform and soft.

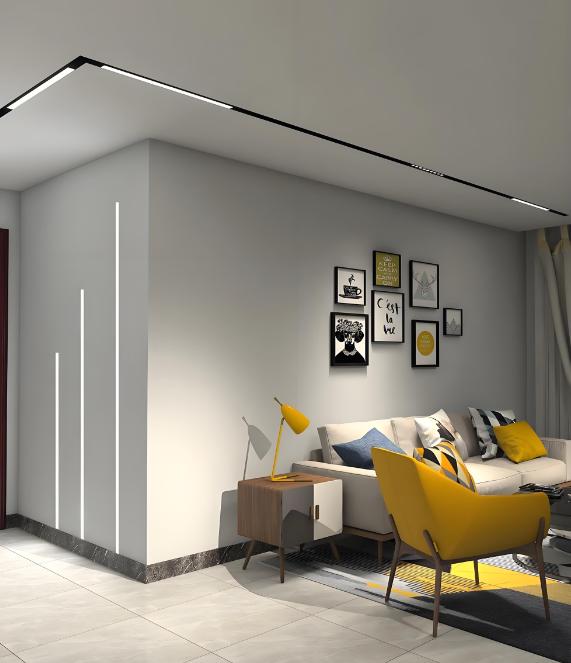

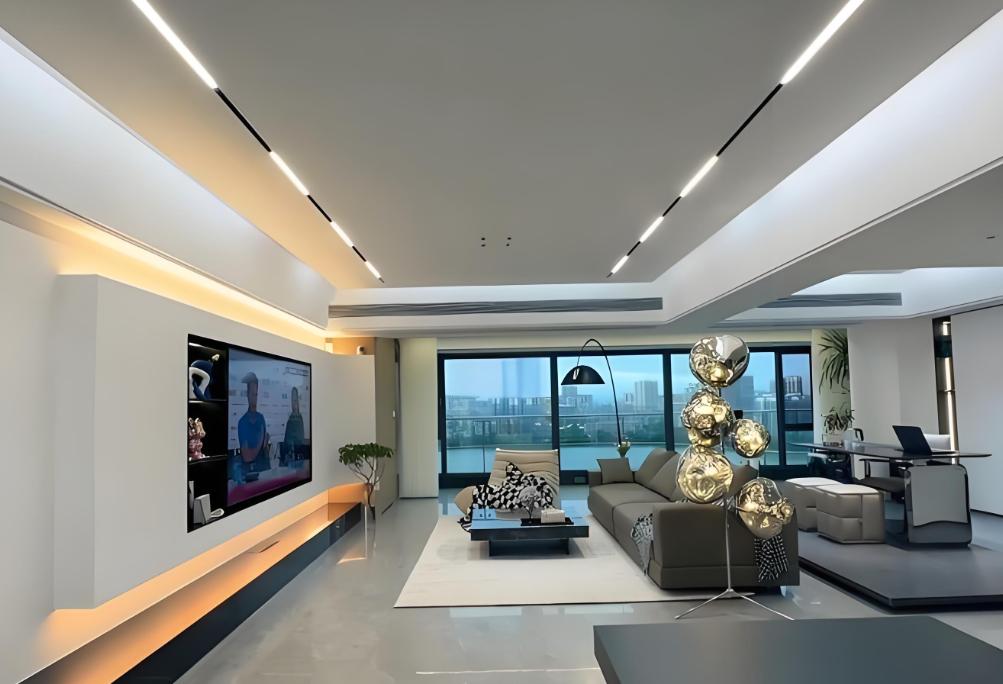

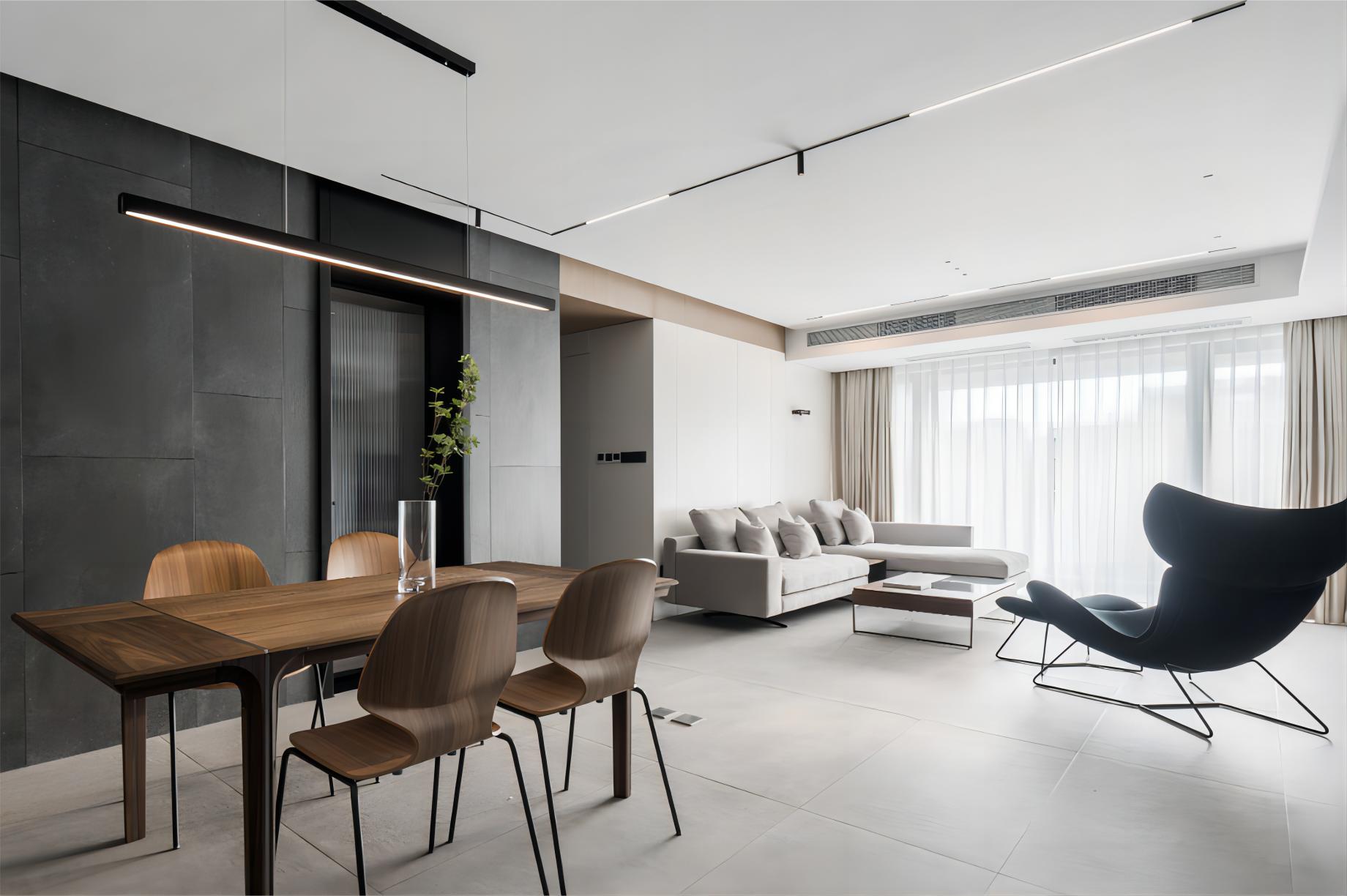

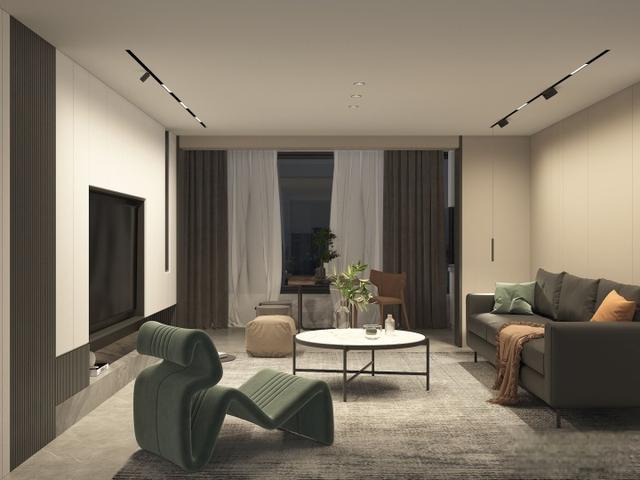

A. Living Room
In the deep and deeper living room space, make the overall space light and shadow uniform, enhance the open sense of the whole space.

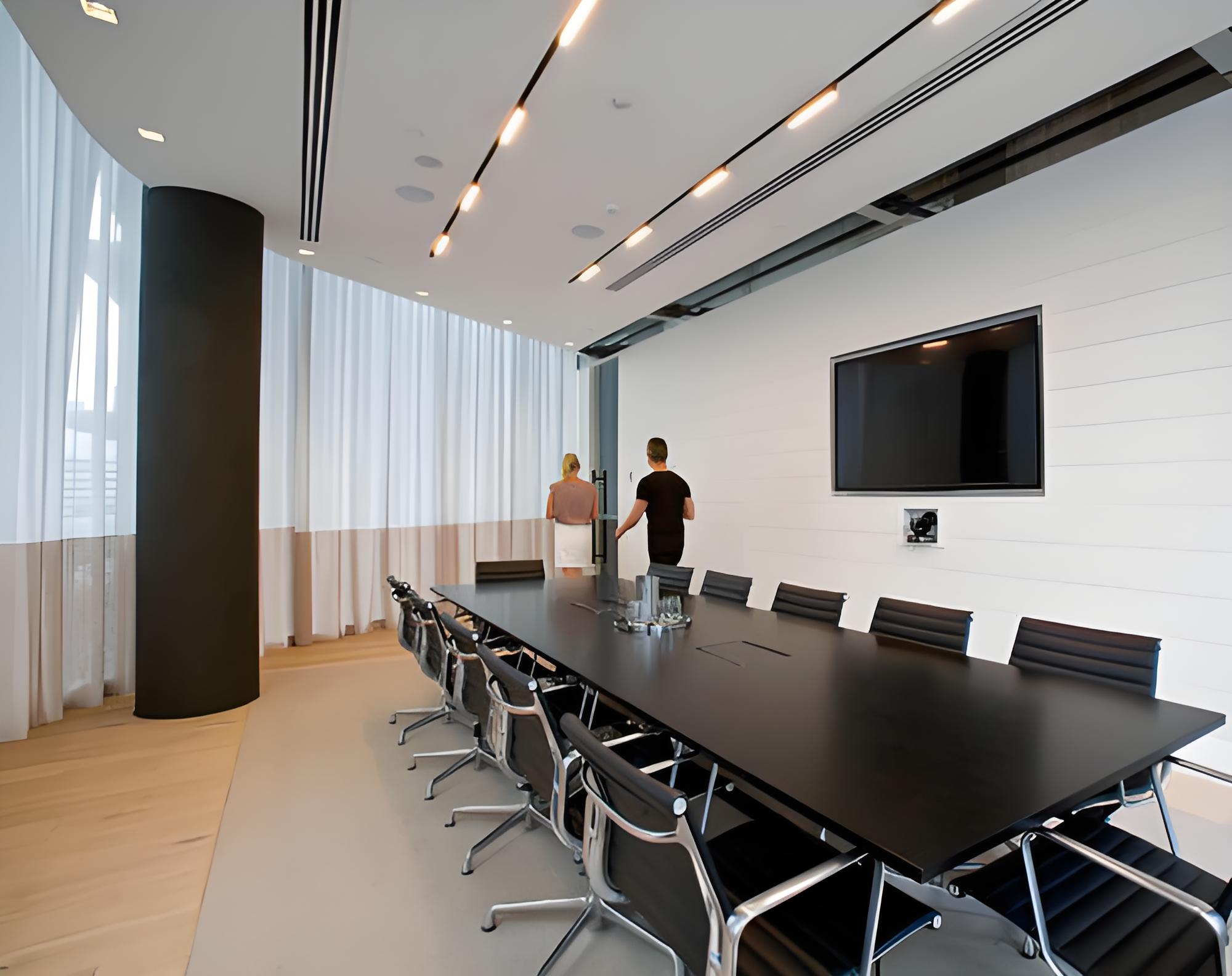

B. Office Area
Applied in the public office area and leisure area, the light is soft and natural, making the space bright and comfortable.
C. Hotel
Used in the hotel, and the bar lighting design to form a very artistic space atmosphere, while the simple track lights add a sense of advanced.

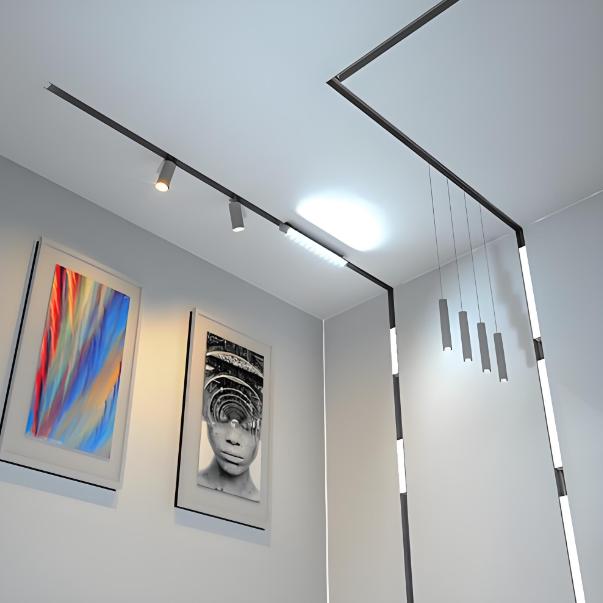

7.2 Magnetic lights in the key lighting

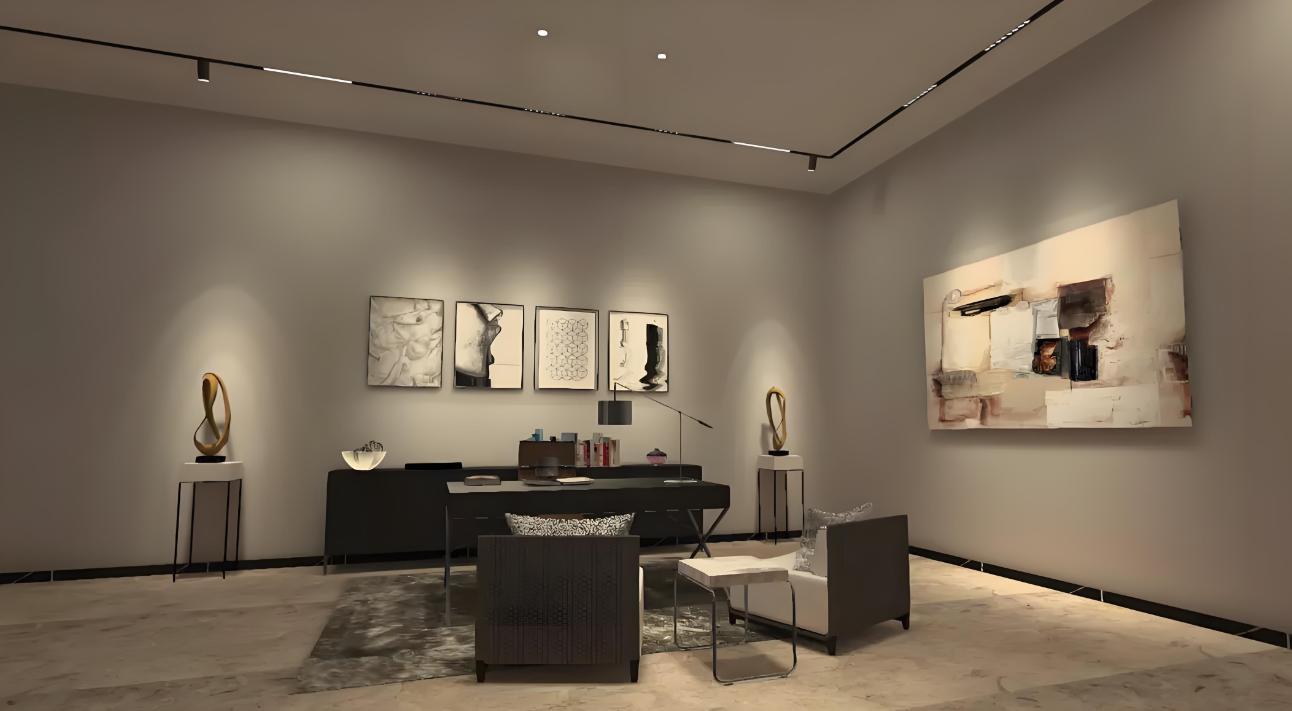

It is usually used to emphasize the specific parts or furnishings of the space, such as architectural elements, frames, clothes and kitchens, collectibles, decorations, and works of art.
Magnetic fixture series of movable modules suitable for key lighting, if the illuminated object facade area is relatively large is suitable for magnetic folding light module, small size, slender can be considered with magnetic track spotlight.
Popular in commercial lighting and exhibition halls, used for merchandise or exhibits focus lighting, make it more intuitive, enhance the material texture, more artistic atmosphere.

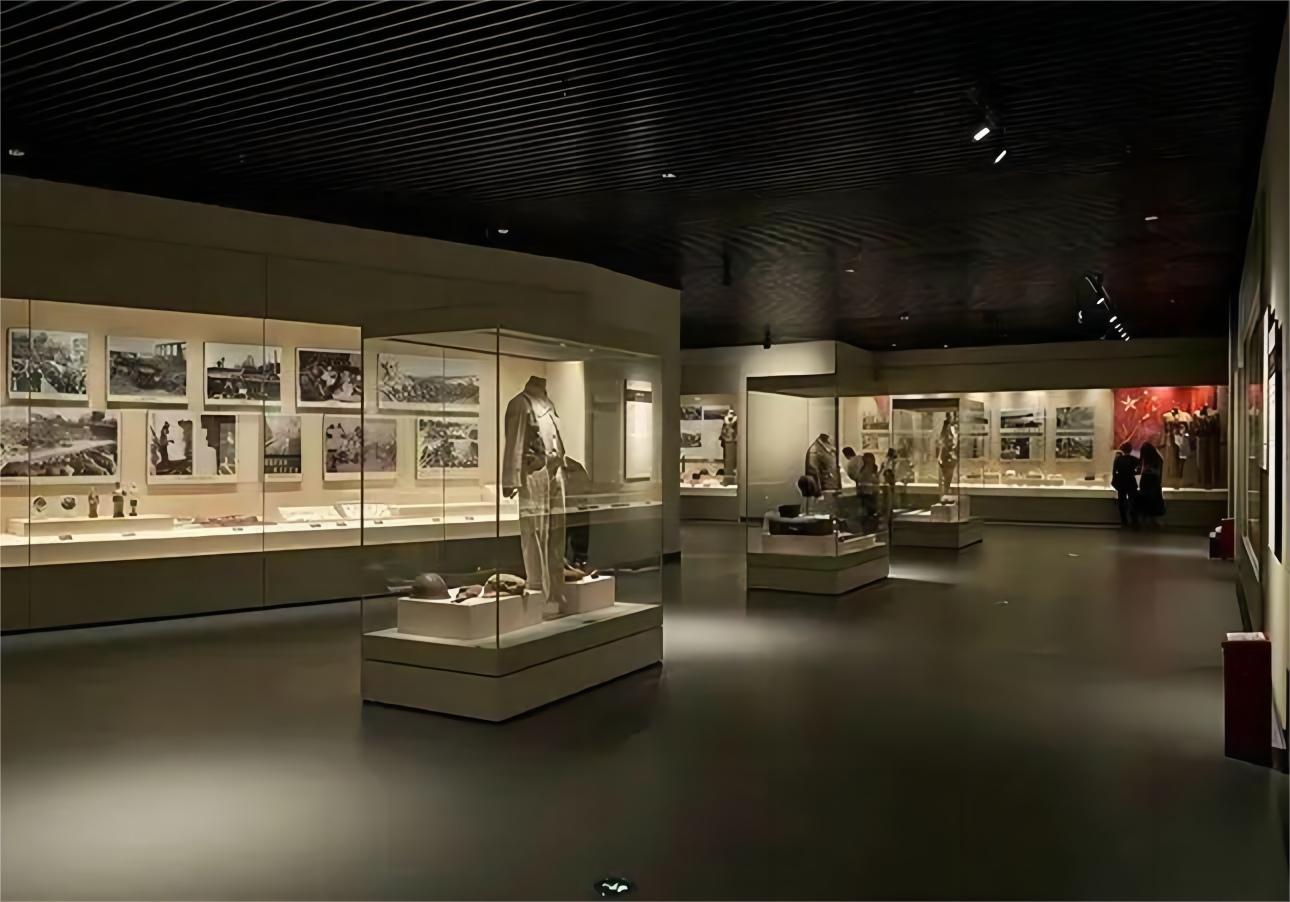

A. Exhibition building
Used in galleries and museums, the exhibits present the most perfect visual effect and enhance the artistic atmosphere.

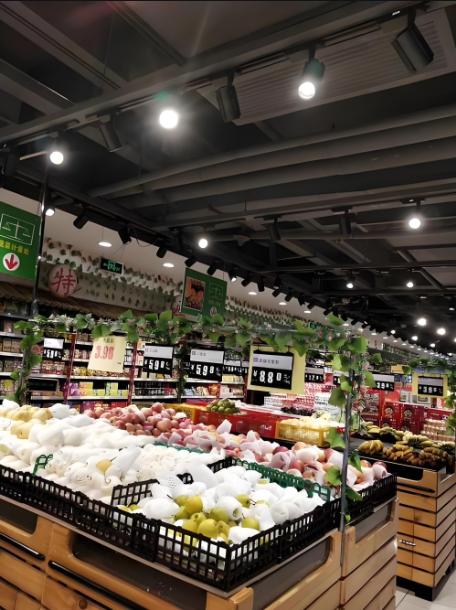

B. Supermarket
The shelves used in the supermarket sales area make the items on the shelves appear more attractive, thus increasing the purchase demand.

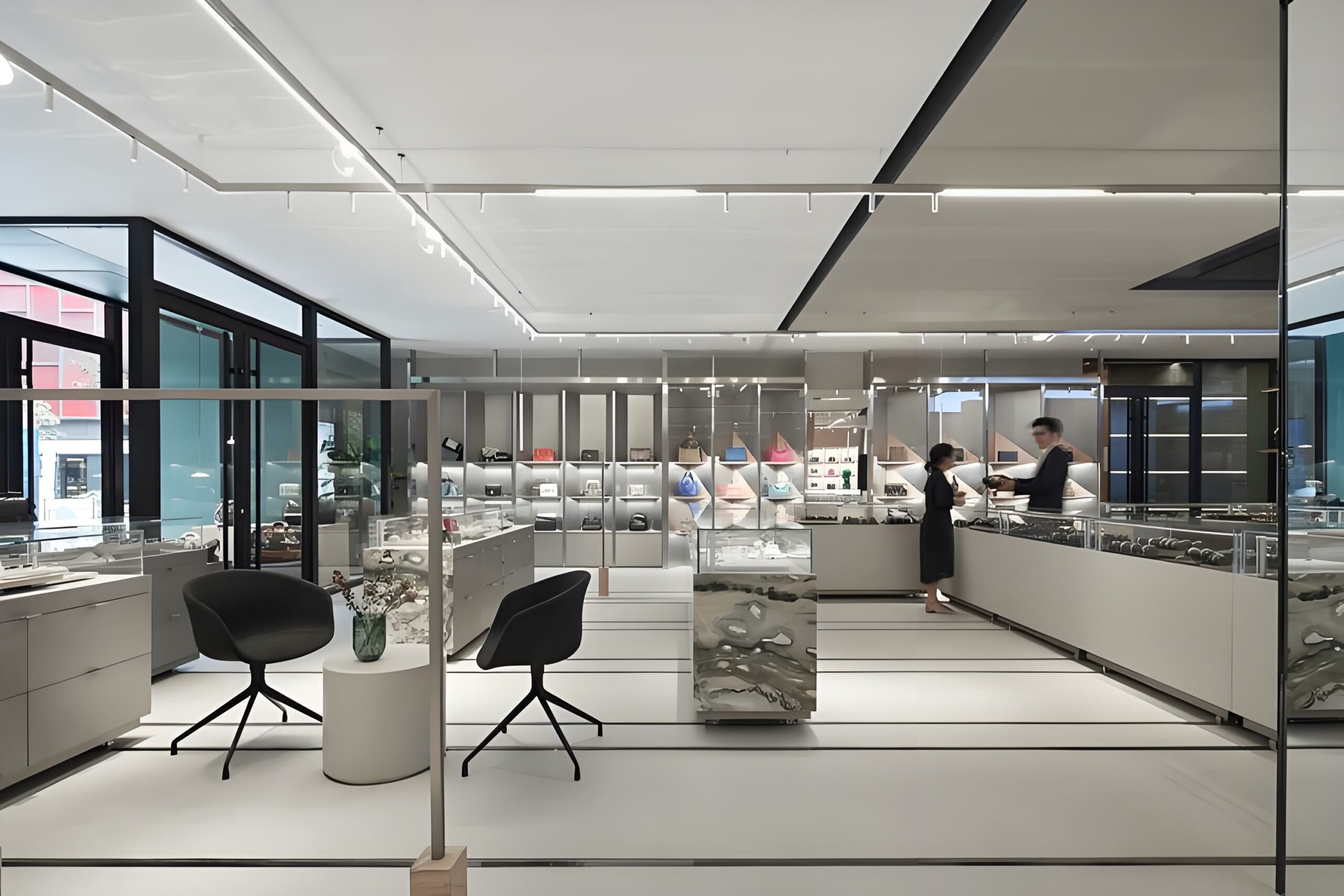

C. Shopping mall
Used in the sales area of shopping malls, through the guidance of light and the display design, highlight the texture of the goods themselves.
7.3 Magnetic track light in local lighting
It is also called task lighting, as the name suggests is to provide light for dining, writing, reading, chess, drawing and other activities. The many style of magnetic track light can choose on demand, install magnetic suction decorative chandelier on the table, can add light for the dish.
Suspended the track on the desk, combine the floodlight or grille light module, so that the office appears open and can provide appropriate light for the working surface.
A variety of choices of magnetic track lights use, fully reflects the flexible practicality of magnetic track light. More used for wall washing, enhance the space change and sense of hierarchy, create a suitable environmental atmosphere. Through the design of wall washing and matching with other lights, rich light and shadow effects are presented to enhance the design charm of the space.

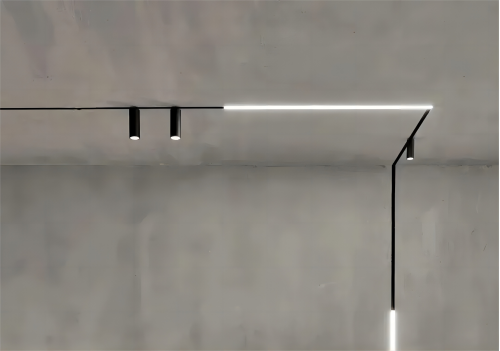

7.4 Magnetic track light in decorative lighting

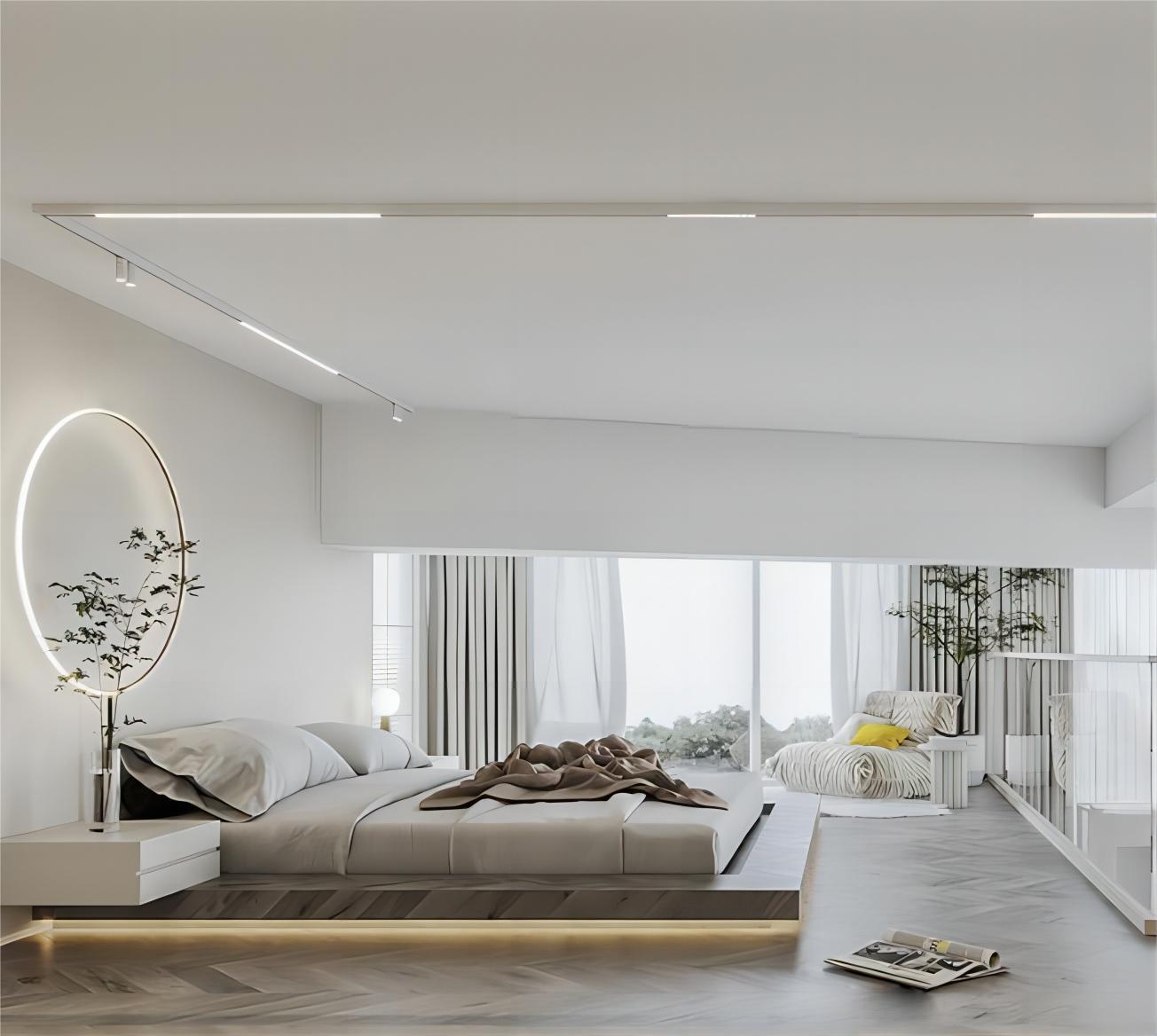

The last decorative lighting, actually the magnetic suction lamp has the fashionable and contracted line beauty originally, and it is very easy to build this kind of fashion sense in the space. Additional a few modelling extremely simple adornment lamp, also can very good adornment space, raise style, reveal master fashion minimalist temperament.
Installation of a magnetict track light
There are three common ways of installing magnetic track, which are recessed, surface mounted and suspended. The installation is simple, can be equipped with different lights, can freely increase or decrease the number of lights, the number of lights installed on the track is not limited to time, theoretically does not exceed the wattage of variable voltage power supply can be.
The recessed track is the most simple in the shape, the overall line is more delicate, but the installation difficulty is the highest, the ceiling needs to complete the early embedding, in the embedding process, the board can be used to fix the track.
If you want to know more about the installation of recessed magnetic track light, this video can help.
If the owner has requirements for the height, or do not want to do the ceiling, it is not recommended to choose this installation method.
It should be noted that the damage of the magnetic track light generally appears in the power supply part, so it is very important to hide the power supply in a convenient maintenance position, usually can be put in the air conditioning access port. It is also necessary to choose a good quality transformer in the early stage, after all, the less maintenance, the better. (Here focus on the recessed track design, reserved access port is to install magnetic track light is very important, mainly to facilitate maintenance investigation. Surface track installation and suspension do not need to be embedded, in the case of do not want to do the ceiling can be achieved.

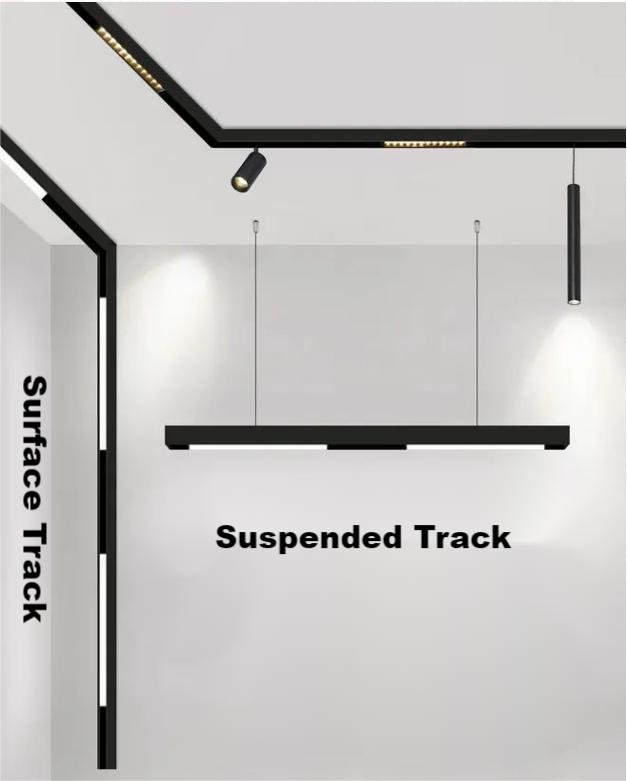

Surface track can be slotted in the top surface, to ensure that the power can be installed, suitable for owners who do not want to abandon the height of the height, the need for professional electrician operation. Considering that the track itself has a certain thickness, it is best to choose a narrow and fine style as far as possible when installing it, otherwise it is easy to be too prominent under the background of the wall. Compared to the embedded ones, the suspended installation method is relatively simple, often used in restaurants, aisles and office areas.
Magnetic track light is recommended
Here to introduce to you two Mibang lighting launched magnetic track light products, its quality, after-sales are guaranteed, can rest assured to buy.

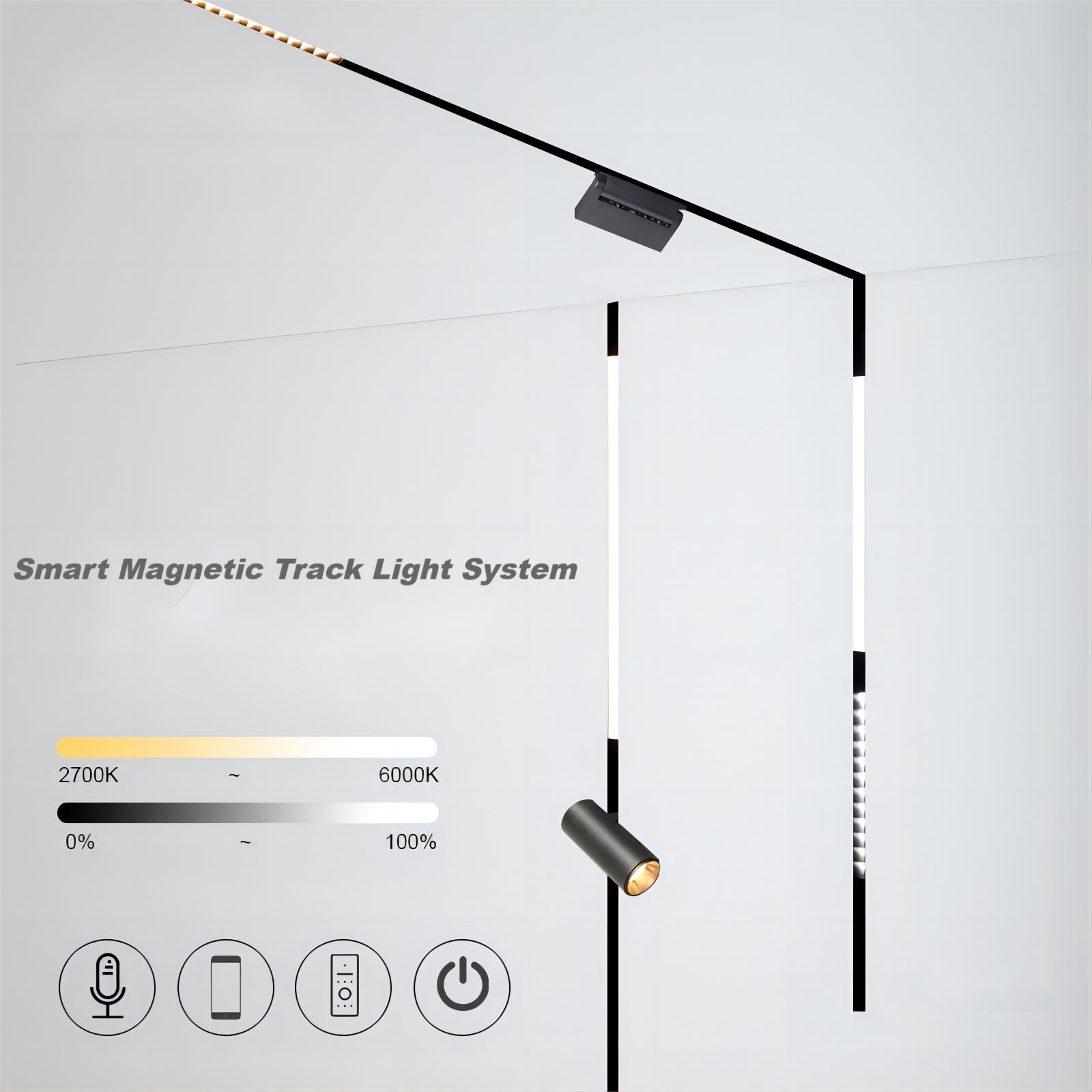

9.1 Mibang lighting intelligent magnetic track light
A. Support mobile phone APP, smart speaker, remote control, panel switch and other control methods, intelligent dimming and color tuning, follow the change.
B. Thickened track, strong magnetic force, slim profile, better structure, better support, safe and stable yet slim and lightweight.
C. DC48V low voltage current, power on the light can also be installed and disassembled lamps at will, practical and convenient.
9.2 White magnetic track light from Mibang
A. White appearance, a stronger sense of collocation, suitable for northern Europe, simple, cream wind and other home, full of atmosphere.
B. Four-wire purple flat copper wire, wider contact surface and more stable current; 48V safe low voltage, power touch without risk.
C. High display reference is Ra> 90, close to natural light, to better restore the true color of the object.
Conclusion
Magnetic Track lights can be freely spliced length, free to increase the light, and they can make the space more extended. In linear lighting design, magnetic suction lamps can be perfectly integrated into the space to create a unique light and shadow atmosphere, and its flexibility breaks the traditional design thinking, injects a clear stream into the lighting design, and also provides more possibilities for the design of no main light.
Magnetic track lights as an excellent effect of a minimalist linear lighting, through the creative design and free division of space, to build a variety of stylish minimalist modeling and light and shadow effects, both the function of lighting and visual art. In home use, it gives the home space a unique temperament of minimalism and advanced. Are you also can’t wait to install the simple and high-end magnetic track light system in your space? Contact Mibang for a quote.
